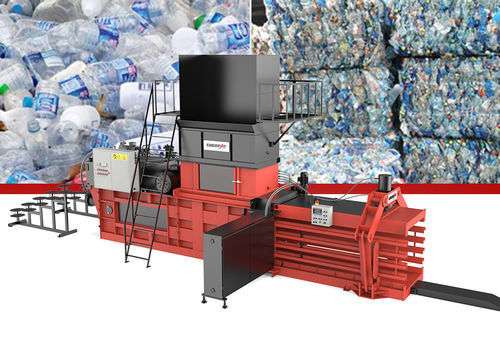

Cardboard baling press HBA-120-110125

for paperfor plasticsfor waste

The ENERPAT HBA-120-110125 is a fully automatic horizontal baler engineered for high-volume recycling operations, producing uniform, high-density, automatically tied bales from plastics, paper, cardboard and textiles.

Key features

• Fully automatic horizontal baler with auto-tie bundling system for continuous, unattended operation.
• 1100×1250 mm chamber (WxH) configured to produce uniform, high-density bales.
• High compression capacity delivering consistent bale density (900–1200 kg typical for this model range).
• Three-action compression (top and dual-side synchronized cylinders) for precise bale squareness and density.
• High-tensile quenched steel wire and German automatic tying technology for reliable, transport-ready ties.
• Heavy-duty, one-piece steel frame with ready-to-run design for fast integration into production lines.
• High-performance hydraulic system with cartridge valve block and premium seals for long-term, leak-free operation.
• Siemens/Schneider PLC with touchscreen HMI for programming, real-time monitoring and parameter customization.

Operating principle

• Conveying and feeding: material is transferred into the hopper/chamber by conveyor or manual feed as configured.
• Hydraulic compression: synchronized cylinders compress the material to the preset force and cycle parameters.
• Bale formation & ejection: automatic tying secures the bale and the ejection system discharges finished bales for storage or transport.

Material application versatility

• Plastics: PET bottles, HDPE containers, plastic film/stretch wrap (configurable for different plastic streams).
• Paper & cardboard: OCC (old corrugated containers), mixed paper, corrugator trim.
• Textiles: used clothing, textile scraps and rags — compacts bulky textile streams into dense bales.
• Other: EPS foam scraps, shredded paper and similar non-metallic waste streams.

Additional functionality & benefits

• Intelligent energy management via PLC and optimized hydraulic circuit for efficient continuous operation.
• Customizable cycle parameters (compression time, force) through the touchscreen interface to adapt to different materials.
• Designed for high uptime with recommended spare-part stocking for wear components and straightforward maintenance procedures.

Technical specifications

• Model series: HBA
• Commercial model: HBA-120-110125
• Brand: ENERPAT
• Bale chamber (WxH): 1100 × 1250 mm (length L variable)
• Typical bale weight (cardboard): 900 - 1200 kg
• Motor power: 55 kW
• Press force: 120 t
• Machine footprint (L × W × H): 9250 × 4150 × 4850 mm
• Control: Siemens/Schneider PLC with touchscreen HMI
• Compression technology: 3-action synchronized hydraulic cylinders (top + both sides)
• Tying system: High-tensile quenched steel wire with German automatic tying mechanism
