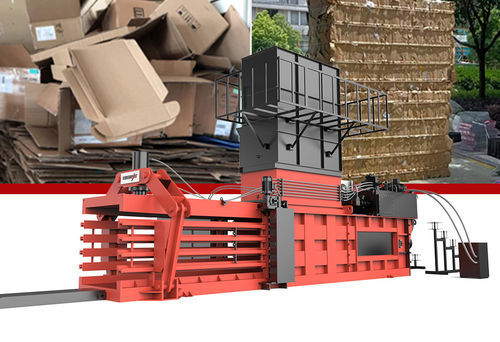

Cardboard baling press HBA-60-11075

for paperfor plasticsfor bottles

The ENERPAT HBA fully automatic horizontal baler converts loose recyclable materials into dense, transport-ready bales suitable for recycling and logistics handling. It is designed for recyclers, distribution centers, paper/plastic processors and manufacturing sites that generate high volumes of cardboard, paper and similar materials.

Key benefits and features

• Fully automatic horizontal baler with automatic tying system for continuous operation and reduced manual handling.
• Three-directional compression (three hydraulic cylinders) for high-density, uniform bales that resist breakage during handling and transport.
• Tying system using quenched steel wire and German automatic tying technology to ensure secure bale binding.
• Robust hydraulic system with cartridge valve blocks and high-quality sealing components for reliable, low-leak operation.
• PLC control (Siemens/Schneider) with touchscreen or push-button interface, alarms and monitoring for straightforward configuration and troubleshooting.

Who needs the HBA-60-11075?

• Material Recovery Facilities (MRFs) and recycling centers processing mixed paper, cardboard and containers.
• Corrugated cardboard and paper mills baling OCC and paper scrap for recycling or resale.
• Plastic recycling plants processing PET bottles, HDPE containers and plastic film.
• Retail and e-commerce distribution centers managing packaging waste such as cardboard boxes and stretch film.
• Manufacturing plants recycling off-spec products, packaging and light production scrap.

Material application

• OCC (old corrugated containers) and corrugated cardboard boxes.
• Mixed paper: office paper, newsprint and other paper grades.
• Kraft and brown paper, paper cores and roll trim.
• Plastics: PET and HDPE bottles, plastic film and stretch film.
• Household recyclables and other non-metal recyclable materials where applicable.

Operating principle

• Feeding: material is delivered into the hopper by conveyors or manual feed.
• Hydraulic compression: multi-directional cylinders compress loose material under high force to form dense bales.
• Tying and ejection: automatic tying secures the bale with quenched steel wire and the bundling system ejects the finished bale for stacking or transport.

Specification sheet (product family overview)

• HBA-30-5050 — Bale size 500×500×L (mm) — Bale weight (cardboard) 40–70 kg — Motor power 11 kW — Press force 30 t — Machine size 5300×2600×1750 mm
• HBA-40-7272 — Bale size 720×720×L (mm) — Bale weight (cardboard) 200–500 kg — Motor power 22 kW — Press force 40 t — Machine size 6770×3050×3580 mm
• HBA-60-11075 — Bale size 1100×750×L (mm) — Bale weight (cardboard) 400–700 kg — Motor power 22 kW — Press force 60 t — Machine size 6880×3850×3550 mm
• HBA-80-11075 — Bale size 1100×750×L (mm) — Bale weight 600–900 kg — Motor power 37 kW — Press force 80 t — Machine size 6880×3850×3550 mm
• HBA-100-110110, HBA-120-110125, HBA-150-110125, HBA-200-110125 — larger-capacity variants covering greater bale weights, motor power and press forces (see product family table for specifics).

Core advantages and technology highlights

• Integrated one-piece structure for fast commissioning and reduced operator training.
• Three-directional compression with synchronized side and main cylinders for consistent, dense bale formation.
• Automatic tying system designed to keep bales secure during storage and long-distance transport.
• Powerful hydraulic components (cartridge valves, tapered fittings, Hallite seals) for fast, low-leak performance.
• Advanced PLC control (Siemens/Schneider) offering real-time monitoring, programmable cycles and automatic alarms.

Technical specifications

• Model: HBA
• Commercial model variant on this page: HBA-60-11075
• Brand: ENERPAT
• Bale size (W×H×L): 1100 × 750 × L (mm)
• Typical bale weight (cardboard): 400–700 kg (material and moisture dependent)
• Motor power: 22 kW
• Press (compression) force: 60 t
• Machine footprint (L×W×H): 6880 × 3850 × 3550 mm
• Automatic tying: German automatic tying technology with quenched steel wire
• Control system: Siemens/Schneider PLC with touchscreen or push-button interface
• Hydraulics: cartridge valve blocks, Hallite sealing, H-type tapered fittings to reduce leakage
• Primary applications: OCC, mixed paper, kraft/brown paper, paper cores, plastic bottles and films, household/recycling materials
