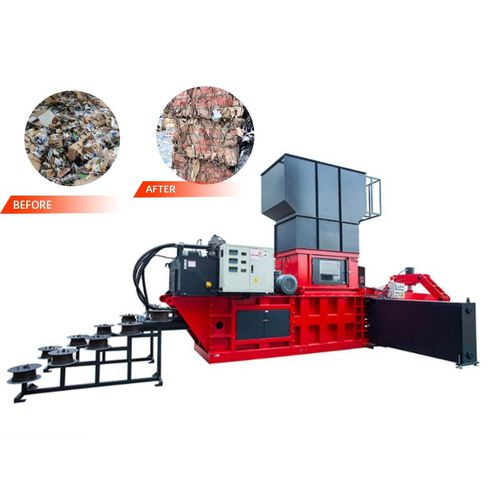

Textile baling press HBA series

horizontaltop-loadingautomatic

Overview
Horizontal baler engineered for mattress fabric, foam and textile recycling. Large feed hoppers accept gravity or belt-conveyor automatic feeding to maximize input throughput and bale density, improving storage and transport efficiency for recycling operations.

Key Features

• Automated operation for continuous high-efficiency baling
• Three-direction compression with triple hydraulic cylinders for consistent bale shaping
• Adjustable bale chamber depth to match material and customer requirements
• Plug-and-play design for rapid installation and commissioning
• German auto-tying system (Auto Tie) for secure, repeatable bale tying
• High-quality components: cartridge-style hydraulic valve group, H-type tapered fittings, UK Hallite hydraulic seals
• Siemens/Schneider PLC control with touchscreen and one‑button operation; integrated alarm management
• Real-time monitoring of runtime, current and temperature; programmable compression and feeding cycles

Basic Info

• Customized: Available
• Condition: New
• Warranty: 12 Months
• After-sales Service: Overseas Service Center Available
• Feature: Automation, High Efficiency
• Press Force: 40t–150t (models extendable to 200t)
• Motor: 11kW–110kW (typical 22kW–90kW)
• Tie Model: Auto Tie (German auto-tying system available)
• Baling Type: Horizontal Baling
• Transport Package: Plastic film, steel frames, wooden boxes
• Trademark: Enerpat
• Origin: China
• HS Code: 8422400090
• Production Capacity: 20 PCS/Month

Models & Typical Specifications (table)
Model | Bale Size (WxHxL) (mm) | Bale Weight (Cardboard) (kg) | Motor Power (kW) | Press Force (t) | Machine Size (LxWxH) (mm)
HBA-30-5050 | 500×500×L | 40–70 | 11 | 30 | 5300×2600×1750
HBA-40-7272 | 720×720×L | 200–500 | 22 | 40 | 6770×3050×3580
HBA-60-11075 | 1100×750×L | 400–700 | 22 | 60 | 6880×3850×3550
HBA-80-11075 | 1100×750×L | 600–900 | 37 | 80 | 6880×3850×3550
HBA-100-110110 | 1100×1100×L | 800–1100 | 45 | 100 | 8560×3950×4550
HBA-120-110125 | 1100×1250×L | 900–1200 | 55 | 120 | 9250×4150×4850
HBA-150-110125 | 1100×1250×L | 1100–1300 | 90 | 150 | 10050×4100×4910
HBA-200-110125 | 1100×1250×L | 1250–1350 | 110 | 200 | 10050×4100×4910

Product Description — Additional Details

• Specifically designed for mattress fabric, foam and textile recycling with wide feed hoppers and flexible feeding options (gravity or belt conveyor)
• Three-direction bale closing mechanism ensures uniform bale geometry and increased bale density
• Wear- and corrosion-resistant quenched steel wire in critical components
• German auto-tying system and robust auto tie models ensure reliable tying in continuous operation
• High-performance hydraulic system with fast-response valve group and proven seals; PLC control with touchscreen for intelligent monitoring and control
• Multiple model sizes (8 standard models) to match capacity and material characteristics

Technical Specifications

• Press Force range: 40 t to 150 t (extended options to 200 t)
• Motor power range: 11 kW to 110 kW (typical 22 kW–90 kW)
• Tie model: Auto Tie (German auto-tying system available)
• Baling type: Horizontal baling
• Transport package: Plastic film, steel frames, wooden boxes
• Warranty: 12 months
• Condition: New
• After-sales: Overseas service center available
• Production capacity: ~20 pcs/month
• HS Code: 8422400090
• Trademark: Enerpat
