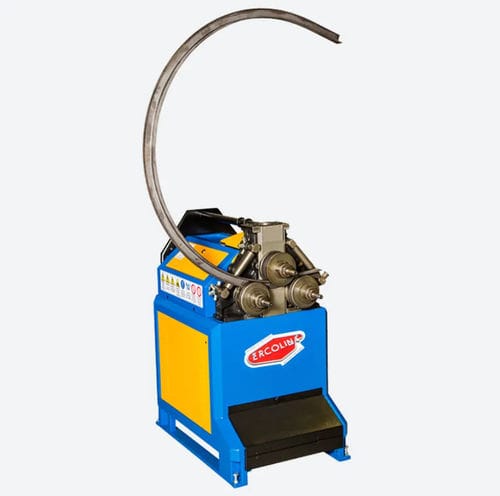

electro-hydraulic bending machine / for tubes / profile / bar
CE50H

Add to MyDirectIndustry favorites
Compare this product
electro-hydraulic bending machine / for tubes / profile / bar electro-hydraulic bending machine / for tubes / profile / bar - CE50H
{{requestButtons}}

Characteristics

  • Operation:

    electro-hydraulic

  • Product handled:

    for tubes, profile, bar

  • Other characteristics:

    digitally-assisted, 3 drive rollers, pyramid type

Description

50mm roll shaft diameter
80 x 2 mm tube capacity (Min Rad.800 mm)
2½” Gas inches (3.6 mm) capacity (Min Rad. 400mm)
60 x 60 x 6 mm angle iron capacity
Bending speeds 20% faster than competitive machines
Universal tooling set included with each machine
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe with tapered roller bearings proven to outperform competitive models
Programmable touchpad controls with digital center roll positioning display
Memory storage with eight (8) individual programs and unlimited passes
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Inline direct drive roll shaft system
Optional Anti-twist correction system for angle iron “Leg In” applications
Optional 2 Speed Model Available
CNC Model Available (CE50-ECO2)
Mechanical center roll positioning models available
