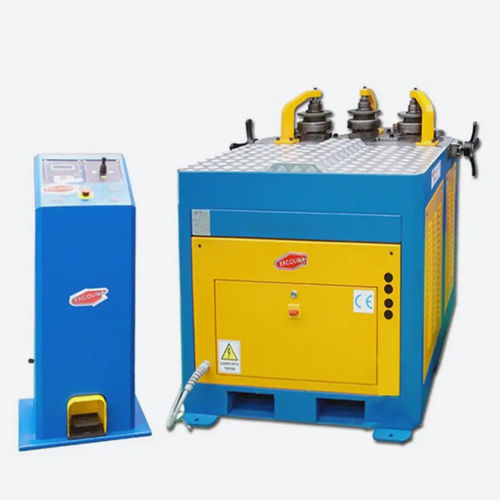

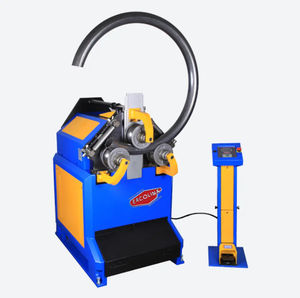

Tube rolling machine CE60H3VG

hydraulicCNC

Overview
The CE60H3VG ring roller machine is an industrial roll-forming unit with a 50 mm shaft diameter and a heavy steel body, designed for bending and forming round tubes and profiles. It accepts round tube up to 90 mm x 4 mm and provides hydraulic upper roller adjustment, programmable operations and a universal tool set for versatile production.

Features

• Shaft diameter: 50 mm
• Maximum capacity on round tube: 90 mm x 4 mm
• Maximum capacity on gas tube: 3" x 4 mm
• Maximum capacity on angle sections: 80 x 80 x 11 mm
• Forged, treated and ground nickel-chromium steel shafts for minimal bending
• High modular section with variable interaxis 300–600 mm
• Universal tool set included
• Storage up to 8 individual programs and unlimited passages

Technical specifications

• Model: CE60H3VG
• Shaft diameter: 50 mm
• Standard working rollers diameter: 178 mm
• Thrust roller max stroke: 142 mm
• Shaft speed: 6 rpm
• Number of independent driving rollers: 3 (smooth)
• Voltage: 440 V
• Motors: 2 x 1.1 kW
• Hydraulic unit motor: 1.85 kW
• Machine body: Electrowelded steel
• Piston thrust: 170,000 N
• Machine work plan: Horizontal
• Upper roller adjustment: Hydraulic
• Display: Digital
• Number of storable programs: 8
• Electric control pedal: YES
• Dimensions (L x W x H): 1250 x 1320 x 1200 mm
• Weight: 730 kg
