Hydraulic bending machine CE120H3-RLI

electricfoot-operatedtube

Overview

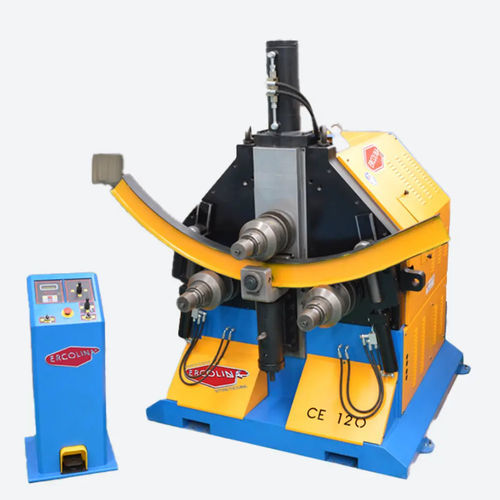

The CE120H3-RLI ring roller machine is a three-driving-roller bending system designed for forming rings and cylindrical profiles. It features 100 mm diameter shafts, a single-block steel frame with electrowelded structure and a cast iron GS500 machine body to ensure rigidity when working high-section profiles. Optional side guide system available.

Minimum external diameter
⌀ 70 x 1.5 mm

Features

• 100 mm shafts
• High repeatability
• High modular section for maximum performance with minimal flexion
• Single-block steel frame
• Electrowelded structure
• Forged, threaded treated shafts for micrometric roller adjustment and reduced use of spacers
• Heat-treated, anti-scratch work rollers
• Quick tool replacement system
• Electronic position reading of the central roller (programmable touch pad) for high repeatability
• Simple and intuitive programming
• Reduced maintenance
• Bending possible in vertical and horizontal planes
• Universal tool set included
• Low-voltage remote control with pedal
• Direct shaft guidance system

Technical Specifications (table)
Shaft diameter: 100 mm
Work rollers standard diameter: 310 mm
Thrust roller max stroke: 300 mm
Shaft speed: 6 rpm
Number of independent driving rollers: 3 smooth
Voltage: 380/220/440/480 V
Engines: 3 x 1.85 kW
Hydraulic unit motor: 2 kW
Machine body: Cast iron GS500
Piston thrust: 360,000 N
Machine work plane: Horizontal and vertical
Upper roller adjustment: Hydraulic
Display: Digital
Machine base: Electrowelded steel
Number of memorisable programs: 8
Pedal electric control: YES
Dimensions (WxDxH): 1800 x 2200 x 1700 mm
Weight: 2800 kg

Others available models (summary)
CE120HR3-RLI — Hydraulic 3 driving rollers — Three-phase

Caractéristiques / spécifications techniques

• Minimum external diameter capability: ⌀ 70 x 1.5 mm
• Shafts: 100 mm
• Work rollers standard Ø: 310 mm
• Thrust roller stroke up to: 300 mm
• Shaft speed: 6 rpm
• 3 independent smooth driving rollers
• Main motors: 3 x 1.85 kW; hydraulic unit motor: 2 kW
• Supported voltages: 380/220/440/480 V
• Machine body material: Cast iron GS500
• Nominal piston thrust: 360,000 N
• Bending in horizontal and vertical planes
• Upper roller hydraulic adjustment and digital control with programmable touch pad
• Electrowelded steel base
• 8 memorisable programs and pedal electric control
• Dimensions and weight: 1800 x 2200 x 1700 mm — 2800 kg
