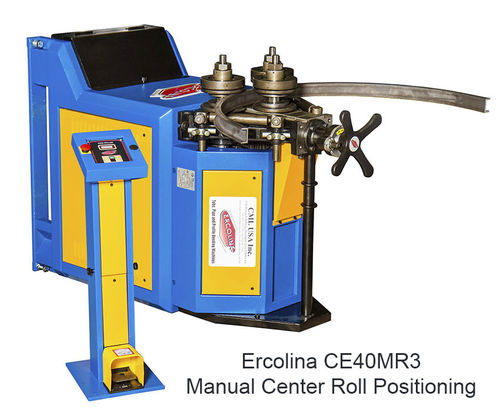

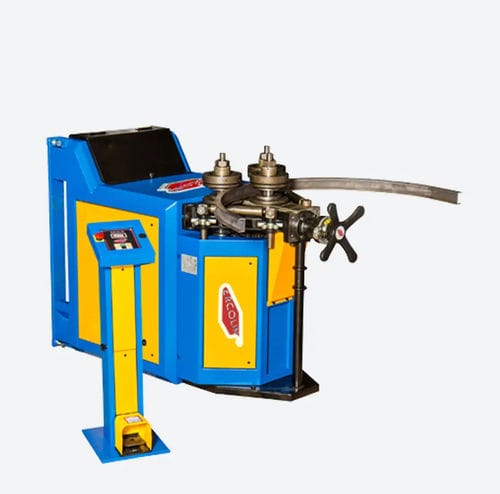

Electric bending machine CE40MR3

tubeprofilebar

CE40MR3 - PROFILE BENDING MACHINE WITH CENTRAL ROLLER POSITIONING GEARBOX AND 3 MOTORIZED ROLLERS CAPACITY UP TO 2" (50 mm) OF TUBE AND ANGLE PROFILE • 40mm forged roller shafts precision ground for maximum performance and minimum deflection • Round tube capacity 70 x 1.5mm (minimum radius 700mm) • Gas tube/pipe capacity 2" (3.2mm) (minimum radius 450mm) • Angle capacity 50 x 50 x 6mm • Horizontal/vertical machine operating position • Universal tool set included with every machine • Robust construction and rigid components for high resistance modules • Digital readout of central roll position • Reinforced main frame design engineered for superior performance over competitive models • Manual central roll positioning via 2 SPEED GEARBOX • Manual side pressure rollers • Threaded roller shafts with micrometric angle adjustment that eliminates the use of spacers • Direct shaft guide system • Optional anti-twist correction system for "Leg In" applications with angles • Electric foot control
