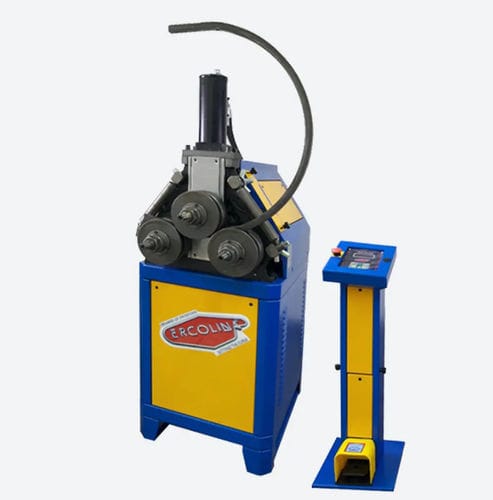

Tube rolling machine ECO50V1T

electrichydraulicCNC

Product description
The ECO50V1T ring roller machine is a compact industrial ring-forming machine available with two or three driving rollers and a digital readout of the central roller position. Supplied with a set of universal rollers, it features a 50 mm shaft diameter and a heavy cast-iron GS500 body with rigid components to bend even high-section profiles. A lateral guide system is available on request.

FEATURES

• Compact, powerful ring roller machine with an excellent price/performance ratio.
• Set of universal tools included with each machine.
• Forged, treated and ground nickel-chromium steel shafts for high performance with minimal flexion.
• Reinforced main frame designed for superior performance compared with machines in the same class.
• Patented Ercolina push-roller descent system that minimizes profile deformation.
• Control with programmable touchpad and digital readout of the central roller positioning.
• Possibility to store up to eight (8) programs and unlimited steps.

Technical specifications

• Minimum external diameter: ⌀ 80 x 2 mm
• Shaft diameter: 50 mm
• Standard diameter work rollers: 178 mm
• Thrust roller max stroke: 142 mm
• Shaft speed: 9 rpm
• Number of independent driving rollers: 3 smooth
• Voltage: 220/240 – 380/440 V
• Motors: 1.85 kW
• Hydraulic unit motor: 1.50 kW
• Machine body: Cast iron GS500
• Piston thrust: 114 000 N
• Machine work plane: Horizontal and vertical
• Upper roller adjustment: Hydraulic
• Display: Digital
• Machine base: Electrowelded steel
• Num. storable programs: 8
• Electric pedal control: YES
• Dimensions: 650 x 1270 x 1100 mm
• Weight: 430 kg
