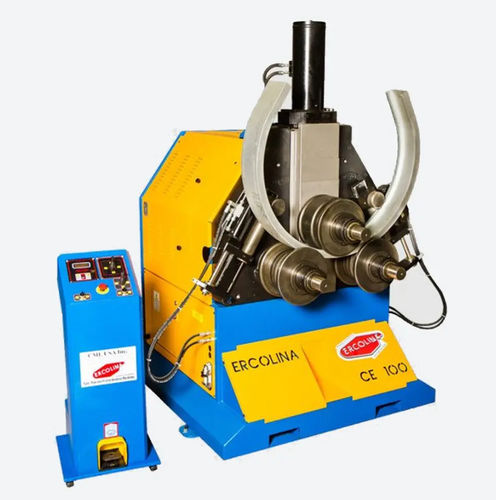

Hydraulic bending machine CE100H3-RLI tubeprofilebar
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube, profile, bar, for pipes
- Number of rollers
- 3 drive rollers
- Displacement
- horizontal, vertical
- Control
- NC, digital
- Other characteristics
- precision, rolling, universal, mechanical, 3-phase, high-efficiency, cold, pyramid type
- Bending capacity
Max.: 150 mm
(5.91 in)Min.: 10 mm
(0.39 in)- Overall length
180 cm
(71 in)- Overall width
165 cm
(65 in)- Total height
200 cm
(79 in)- Weight
2,600 kg
(5,732 lb)- Voltage
220 V, 380 V, 440 V, 480 V
- Total power
1.9 kW, 2 kW
(2.6 hp, 2.7 hp)- Tube diameter
Max.: 150 mm
(5.9 in)Min.: 10 mm
(0.4 in)
Description

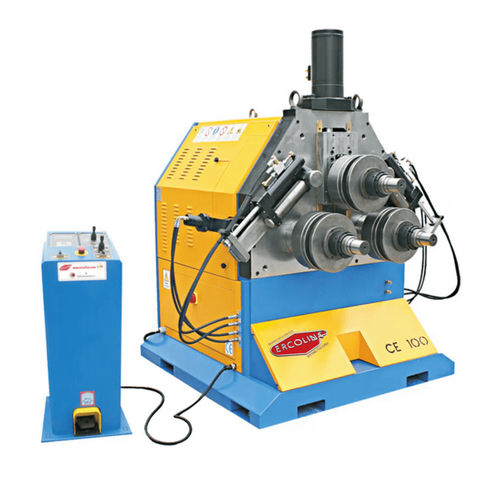

The CE100H3-RLI Ring roller machine has a 100 mm diameter Shaft, a robust and heavy machine body, with rigid parts for bending high section profiles.
FEATURES
High modular section, maximum performance with minimum flexions
Electro-welded structure
High quality cast iron single-bloc frame
Forged, treated and threaded shafts to allow micrometric adjustment of the rollers and limit the use of spacers
Heat-treated anti-scratch rollers
Quick tool replacement system.
Strengthening rod device on request
High repeatability guaranteed by the electronic position reading system of the central roller (programmable touch pad)
Simple and intuitive programming
Reduced maintenance
Bends vertically and horizontally
Set of universal tools included in each machine.
Low voltage remote control with pedal.
Direct shaft guidance system
Catalogs
No catalogs are available for this product.
See all of Ercolina‘s catalogsOther Ercolina products
