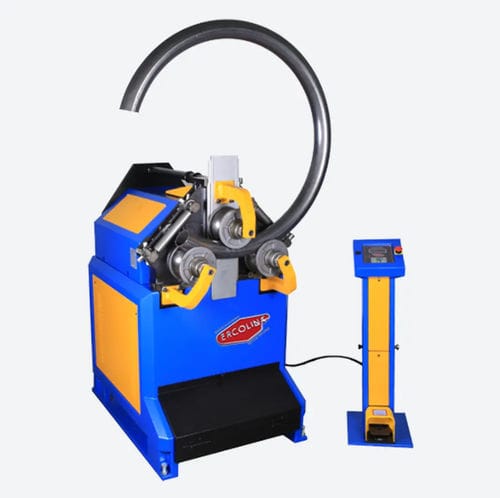

Hydraulic bending machine CE60H

tubeprofilebar

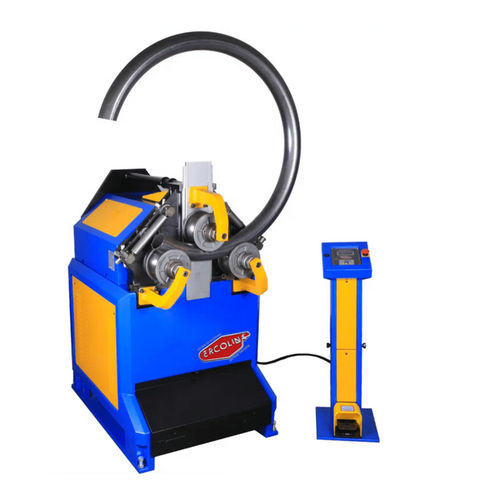

The CE60H Ring roller machine is an extraordinary machine, available with three driving rollers with digital readout of the positioning of the upper roller. Supplied with a set of universal rollers. Ercolina’s CE60H3 angle roller model offers hydraulic positioning of the roller center. FEATURES Set of universal rollers included with each machine Forged, treated and ground nickel-chromium steel shafts for maximum performance with minimal flexion Heavy and robust machine body with very rigid parts to bend even high sections profiles. Reinforced main frame, designed for superior performance compared to machines of the same class Ercolina patented push roller descent system which minimizes profile deformation Controls with programmable touchpad and digital reading of the positioning of the central roller Possibility of storing up to eight (8) Programs and unlimited steps Threaded shafts equipped with micrometric adjustment ring nut for correct and easy positioning of the tools; the use of additional spacers is normally not required. Direct shaft guidance system The anti-twisting / anti-torsion lateral guide system for "leg in" corner profiles is available on request. Increased interaxis Strengthening tie-rods included
