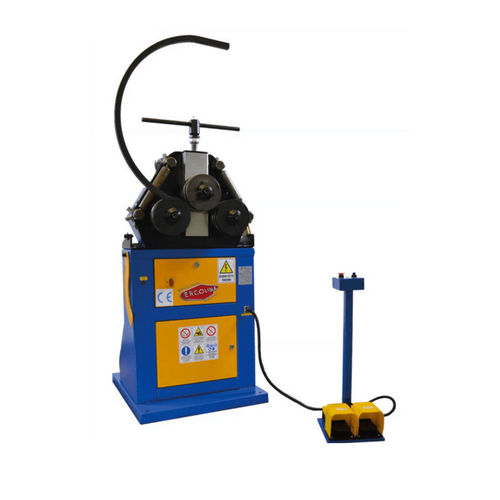

Electric bending machine CE40M

lever-operatedfoot-operatedtube

CE40M- ECONOMICAL YET TOUGH RING ROLLER / PROFILE BENDER WITH CAPACITY UP TO 2” PIPE AND ANGLE • - Same robust design as rest of range for smaller tube and profile bending applications • - 40 mm forged roll shafts precision ground for maximum performance and minimal deflection • - 70 x 1,5 mm round tube capacity (Min. Radius 700 mm) • - 2” Gas/Pipe inches (3.2 mm) capacity (Min. Radius 450 mm) • - 50 x 50 x 6 mm angle iron capacity • - Horizontal/Vertical machine operation position • - Universal tooling set included with each machine • - Heavy duty structure and rigid components for high section modulus ratings • - Digital readout models available • - Reinforced engineered mainframe design proven to outperform competitive models • - Manual Center Roll Positioning • - Manual Side Pressure Rolls • - Threaded roll shafts with micrometric angle adjustment helps eliminate spacer usage • - Inline direct drive roll shaft system • - Optional Anti-twist correction system for angle iron “Leg In” applications • - Three driven rolls model (M3 code) available • - Electric Foot Pedal Control
