Overview

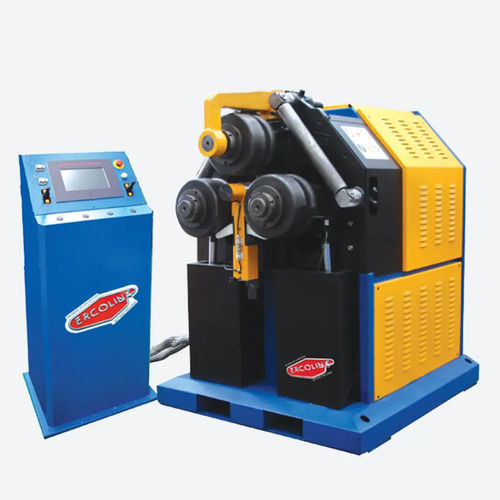

The CE70H3DP ring roller machine is a hydraulic tilting machine with three independent driving rollers, supplied with a set of universal rollers. Its cast-iron structure and rigid components allow forming of high-section profiles; a lateral guide system is available on request.

Features

• Shaft diameter: 70 mm
• High repeatability for series production
• Structure in spheroidal cast iron
• Material feeding possible from both sides
• High-strength alloy steel shafts with thread for micrometric roller adjustment
• Optional strengthening support for central roller
• Symmetrical and asymmetrical bending via independent shaft movement
• Independent movement of lower roller axes to reduce waste and short straight sections
• Touch screen control with USB storage option
• Low-voltage remote control and "dead man" joystick safety device
• Universal tool set included

Minimum external diameter (product attribute)
⌀ 70 x 1.5 mm

Technical Specifications

• Shaft diameter: 70 mm
• Standard diameter work rollers: 260 mm
• Thrust roller max stroke: NO
• Shaft speed: 4.8/3 rpm
• Number of independent driving rollers: 3 smooth
• Voltage options: 220/380/440/480 V
• Engines: 3 x 1.1 kW
• Hydraulic unit motor: 2 kW
• Piston thrust: 2 x 70,000 N
• Machine work plane: Horizontal and vertical
• Upper roller adjustment: Hydraulic
• Display: Touch Screen (USB storage option)
• Machine base: Electrowelded steel
• Number of programmable memories: 8
• Pedal electric control: YES
• Dimensions: 900 x 1380 x 1200 mm
• Weight: 1,600 kg

Other available models

• CE70H3DP — Hydraulic 3 driving rollers tilting — Three-phase
• CE70H3DPNC2 — Hydraulic 3 driving rollers variable speed – 4 inverter tilting — Three-phase
• CE70H3DPCNC3 — Hydraulic 3 driving rollers and lateral straighteners — Three-phase
