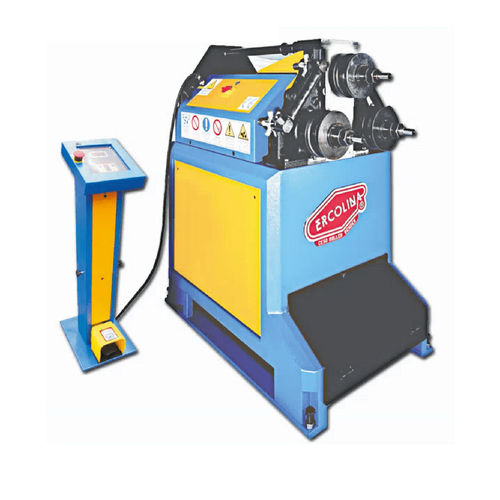

Electro-hydraulic bending machine CE40H3

electrictubeprofile

CE40H3- RING ROLLER / PROFILE BENDER WITH 3 DRIVEN ROLLS AND HYDRAULIC CENTRE ROLL POSITIONING OF CAPACITY UP TO 2” PIPE AND ANGLE • - Powerful HYDRAULIC centre roll adjustment • - 70 x 1,5 mm tube capacity (Min Rad.700 mm) • - 2” Gas x 3,2 mm capacity (Min Rad. 450mm) • - 50 x 50 x 6 mm angle iron capacity • - Universal tooling set included with each machine • - 40 mm forged roll shafts precision ground and fitted for maximum performance and minimal deflection • - Heavy duty structure and rigid components for high section modulus ratings • - Reinforced engineered mainframe with tapered roller bearings proven to outperform competitive models • - Programmable touchpad controls with digital center roll positioning display • - Memory storage with eight (8) individual programs and unlimited passes • - Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage • - Inline direct drive roll shaft system • - Optional Anti-twist correction system for angle iron “Leg In” applications • - Optional 2 Speed Model Avallabile
