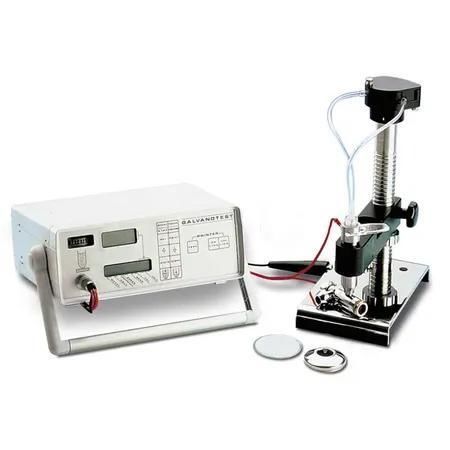

Steel thickness gauge GalvanoTest 2000

for non-ferrous materialsmetalcoating

Description
The coulometric (anodic de‑plating) method for coating thickness measurement on steel, non-ferrous metals and insulating substrates. Suitable for single and multilayer systems (e.g. Ni on steel, Zn on steel, Sn on Cu, Ag on Cu, Cu on epoxy). GalvanoTest delivers exact layer thickness values while leaving the substrate intact. The instrument is microprocessor‑based, easy to operate and requires only minimal training.

Measuring principle
Based on Faraday’s law, GalvanoTest electrolytically dissolves a precisely defined area of the coating. A measuring cell, filled with an electrolyte chosen for the coating/substrate combination, is placed on the sample and sealed by a gasket (examples: 8 mm2, 4 mm2). A controlled current causes removal of the coating; a characteristic voltage change stops the process and the thickness is displayed in μm or mils.

Design
Measuring cell
Cells are available for flat or curved surfaces (curvature radius down to 3 mm) and for very small areas. The 2000 model can be supplied with an air pulsator to ensure electrolyte circulation. An electrolyte cup is available for dipping wires and small parts; it is compatible with both models.

Stand
Adjustable stand for precise positioning of the measuring cell on the sample. The electrolyte distributor pump can be mounted on the stand or on the gauge depending on the configuration.

Processing unit
Microprocessor‑based processing unit with interactive LCD and touchpad. Measurement programs can be entered, results visualized on the alphanumeric display and exported via interfaces to PC, MiniPrint data printer or Y‑T recorder. The characteristic voltage curve can be printed for traceable analysis.

Choosing GalvanoTest 2000 or 3000?
GalvanoTest 2000 is the baseline instrument for a wide range of coating/substrate combinations and multilayer measurements. GalvanoTest 3000 adds an integrated electrolyte pump in the stand, quick‑change measuring cells for different electrolytes and automatic electrolyte filling/emptying to reduce electrolyte consumption. The 3000 supports very small measurement areas down to 0.25 mm2.

Scope of delivery

• GalvanoTest gauge
• Interface for MiniPrint data printer or PC
• Data output for Y‑T recorder
• Standard measuring stand with measuring cell and pulsator nozzle
• Connecting cable (gauge/stand)
• A‑gasket (8 mm2)
• B‑gasket (4 mm2)
• 3 bottles of electrolyte (100 ml each) per customer selection
• Pipettes
• Waste electrolyte bottle
• Spray bottle
• Rubber pencil
• Absorbent paper pack
• Operating manual

Technical specifications

• Measurement range: 0.05 μm – 75 μm
• Layer thickness: up to 75 μm
• DT / NDT: DT
• Suitable substrates: steel, non‑ferrous metals, insulating bases
• Standard measuring areas/gaskets: A (8 mm2), B (4 mm2); additional sizes available
• Measuring cell options: flat/curved surfaces (≥3 mm radius); electrolyte cup for small parts and wires
• GalvanoTest 2000: basic model; option with air pulsator
• GalvanoTest 3000: integrated electrolyte pump, quick‑change cells, minimum spot 0.25 mm2
• Processing unit: microprocessor, interactive LCD, touchpad; outputs to PC, MiniPrint, Y‑T recorder; printable voltage curve
