Cleaning nozzle 1106SS

coolingblow-offcompressed air

Description

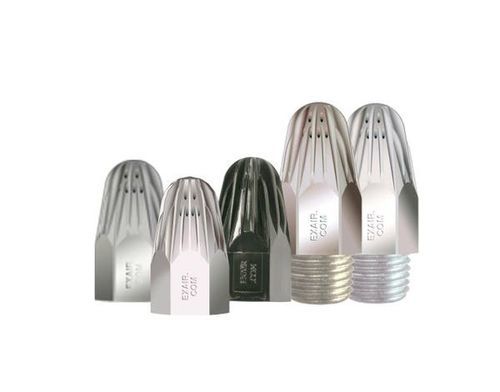

EXAIR's Large Super Air Nozzles are available in sizes from 3/8 NPT to 1-1/4 NPT in a zinc/aluminum alloy. Type 316 stainless steel versions are offered through 1 NPT and PEEK plastic is available in 3/8 NPT. The series delivers concentrated blowing force from 1.9 lbs (0.86 kg) up to 23 lbs (10.43 kg) measured at 12" (305 mm). Protective aerodynamic slots guide airflow to a single point of convergence, producing high impact force while reducing noise compared with typical open blowoffs.

Applications

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages

• Lower compressed air consumption compared with open blowoffs
• Approximately 10 dBA average noise reduction vs typical blowoffs (model dependent)
• Improved blowoff performance at reduced flow
• Compact footprint for tight installations
• Meets OSHA noise and pressure safety requirements
• Supports higher production rates

Materials

• Zinc‑Aluminum alloy — general purpose. Max temp 250°F (121°C).
• Type 316 Stainless Steel — for high temperature, corrosive or abrasive conditions. Max temp 1000°F (538°C).
• PEEK Plastic — chemical resistant, non‑marring for harsh environments. Max temp 320°F (160°C).

Accessories

• Stay Set Hose — flexible, repositionable hoses with memory to hold aim without creep; ideal when frequent repositioning is required.
• Swivel Fittings — allow blowing angle adjustment (±25°) to optimize performance and reduce noise; available in Type 303 or 316 stainless steel.
• Magnetic Bases — permit horizontal or vertical mounting for frequent movement; include shutoff valve to vary force and flow.

Performance (force measured at 12" (305 mm); sound measured at 3' (914 mm); all measurements at 80 PSIG / 5.5 BAR)
Model | SCFM | SLPM | Lbs | Kg | dBA
1104 / 1105 | 35 | 991 | 1.9 | 0.86 | 82
1106 / 1107 | 60 | 1,699 | 3.3 | 1.5 | 87
1112 / 1113 | 91 | 2,577 | 4.5 | 2.04 | 96
1114 / 1115 | 135 | 3,823 | 6.6 | 2.99 | 99
1116 / 1117 | 188 | 5,324 | 9.4 | 4.26 | 102
1118 / 1119 | 300 | 8,495 | 15 | 6.80 | 106
1120 / 1121 | 460 | 13,026 | 23 | 10.43 | 109

Materials / Design Notes
Protective aerodynamic slots focus airflow to a single convergence point to concentrate force and reduce noise compared to typical blowoffs.

Technical specifications

• Brand: EXAIR
• Product family / series: Large Super Air Nozzle™
• Available threads: 3/8 NPT up to 1-1/4 NPT
• Material options: Zinc/Aluminum alloy; Type 316 Stainless Steel (available through 1 NPT); PEEK plastic (available in 3/8 NPT)
• Blowing force range: 1.9 lbs (0.86 kg) to 23 lbs (10.43 kg) (measured at 12" / 305 mm)
• Sound levels: 82 dBA to 109 dBA depending on model (measured at 3' / 914 mm)
• Air consumption examples: 35 SCFM (991 SLPM) to 460 SCFM (13,026 SLPM)
• Typical test conditions: 80 PSIG (5.5 BAR)
• Shown product SKU on page: P1104
• Price shown on page (unit, excluding tax): 95 (currency: USD)
