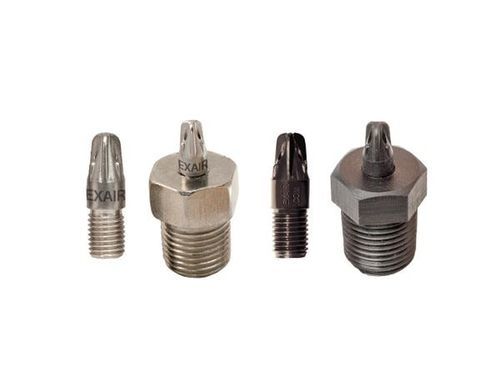

Cleaning nozzle 1108

coolingblow-offcompressed air

Overview
EXAIR's Atto Super Air Nozzle™ delivers the smallest, most precise blowoff available for industrial applications. Produces a focused air pattern approximately 1.0" in diameter at a 6" distance. Operates at a low sound level of 58 dBA. Thread size M4 x 0.5. Available in Type 316 stainless steel or PEEK thermoplastic.

Applications

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist in tight spaces

Advantages

• Lower compressed air consumption compared to conventional nozzles
• Approx. 10 dBA average noise reduction
• Concentrated blowoff for reduced air use
• Compact size for installation in confined areas
• Reduced risk of product damage due to focused pattern
• Meets OSHA noise and pressure requirements where applicable
• Available in corrosion- and temperature-resistant materials

Materials
Type 316 Stainless Steel - suitable for elevated temperatures, corrosive environments and mechanical wear. Maximum temperature: 1000°F (538°C).
PEEK Plastic - non-marring thermoplastic with good chemical resistance for harsh environments. Maximum temperature: 320°F (160°C).

Accessories

• Stay Set Hose — flexible positioning hose that holds aim for frequent nozzle repositioning and prevents creep.
• Swivel Fittings — allow adjustment of blowing angle (±25°) to optimize pattern and minimize noise; available in Type 303 or 316 stainless steel.
• Magnetic Bases — enable horizontal or vertical mounting and quick relocation; include shutoff valve to vary force and flow.

Performance
Air consumption: 2.5 SCFM / 71 SLPM
Blowoff force: 2.0 ozs / 57 grams
Sound level: 58 dBA

Dimensions & Airflow Pattern
Thread size: M4 x 0.5. Compact nozzle design produces a focused air pattern (approx. 1.0" diameter at 6" distance).

Technical specifications

• Brand: EXAIR
• Model / SKU: P1108SS
• Commercial name: Atto Super Air Nozzle™
• Thread size: M4 x 0.5
• Air consumption: 2.5 SCFM (71 SLPM)
• Blowoff force: 2.0 ounces (57 grams)
• Sound level: 58 dBA
• Materials available: Type 316 Stainless Steel (max temp 1000°F / 538°C), PEEK Plastic (max temp 320°F / 160°C)
• Typical air pattern: ~1.0" diameter at 6" from surface
• Price (unit): 49 USD
• Unit of sale: piece
