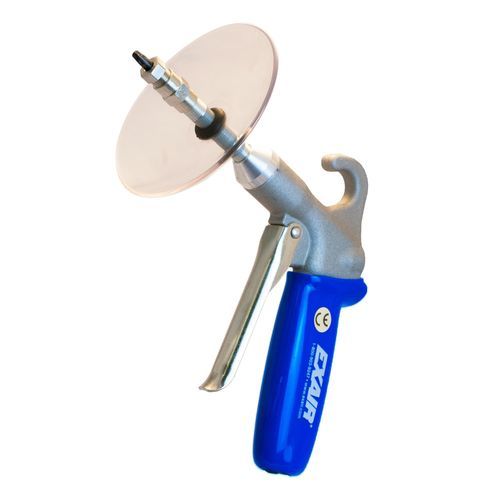

Aluminum air blow gun 1250-6

safetycomposite nozzlemetal nozzle

Overview
Adding an Aluminum Extension Pipe to EXAIR's Soft Grip Safety Air Gun improves access to deep machine cavities and elevated areas. The ergonomic Soft Grip design reduces operator fatigue for extended use and features a large trigger operable with one or more fingers. The durable cast aluminum body includes a hanger hook for convenient storage. When fitted with EXAIR engineered nozzles, these guns minimize compressed air consumption, comply with OSHA pressure standard 1910.242(b) and remain under OSHA noise limits (29 CFR 1910.95(a)). Optional chip shields increase operator protection.

Applications

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Part drying

Advantages

• Lightweight for extended use
• Ergonomic trigger and soft grip
• Highly focused air blast for targeted blowoff
• Nozzle and extension fit into tight spaces
• Reduced compressed air consumption
• Improved blowoff performance
• Enhanced operator safety with optional shields
• Meets OSHA noise limits
• Meets OSHA pressure requirements

Materials

• Soft Grip Safety Air Gun Body: cast aluminum with soft plastic grip
• Nozzle options:
  • Type 316 stainless steel — excellent corrosion resistance; max temperature: 1000°F (538°C)
  • Zinc aluminum alloy — general purpose; max temperature: 250°F (121°C)
  • PEEK thermoplastic — non-marring, excellent chemical resistance; max temperature: 320°F (160°C)

Accessories

• Coiled hose with swivel — heavy-duty compressed air hose, coiled for compact storage (example: 12' / 3.7 m)
• Chip shields — polycarbonate shields to protect operators from flying debris and control splashback
• Aluminum extension pipes and stay-set hose options to increase reach and access hard-to-reach areas

Performance - Models (selection from product page)
Model 1210SS Soft Grip Safety Air Gun - Nozzle: 1100SS Stainless Steel Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 14 SCFM (396 SLPM) - Force: 13 Ozs (369 g) - Sound Level: 74 dBA.

Model 1296SS Soft Grip Safety Air Gun - Nozzle: 1108SS Stainless Steel Atto Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 2.5 SCFM (71 SLPM) - Force: 2.0 Ozs (56.7 g) - Sound Level: 58 dBA.

Model 1297SS Soft Grip Safety Air Gun - Nozzle: 1109SS Stainless Steel Pico Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 4.9 SCFM (139 SLPM) - Force: 5.0 Ozs (142 g) - Sound Level: 68 dBA.

Model 1298SS Soft Grip Safety Air Gun - Nozzle: 1110SS Stainless Steel Nano Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 8.3 SCFM (235 SLPM) - Force: 8.1 Ozs (230 g) - Sound Level: 75 dBA.

Model 1299SS Soft Grip Safety Air Gun - Nozzle: 1103SS Stainless Steel Mini Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 10 SCFM (283 SLPM) - Force: 9.0 Ozs (255 g) - Sound Level: 71 dBA.

Model 1229SS Soft Grip Safety Air Gun - Nozzle: 1126SS Stainless Steel 1" Flat Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 10.5 SCFM (297 SLPM) - Force: 9.8 Ozs (278 g) - Sound Level: 75 dBA.

Model 1290SS Soft Grip Safety Air Gun - Nozzle: 1009SS Stainless Steel Adjustable Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 13 SCFM (368 SLPM) - Force: 12 Ozs (340 g) - Sound Level: 79 dBA.

Model 1280SS Soft Grip Safety Air Gun - Nozzle: 1010SS Stainless Steel Micro Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 13 SCFM (368 SLPM) - Force: 12 Ozs (340 g) - Sound Level: 80 dBA.

Model HP1229SS (High Power) - Nozzle: 1126SS 1" High Power Flat Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 17.5 SCFM (495 SLPM) - Force: 16 Ozs (454 g) - Sound Level: 82 dBA.

Model 1230SS - Nozzle: 1122SS 2" Flat Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 22 SCFM (622 SLPM) - Force: 22 Ozs (624 g) - Sound Level: 77 dBA.

Model 1250SS - Nozzle: 1104SS Stainless Steel Super Air Nozzle. Inlet: 1/4 FNPT. Air Consumption: 35 SCFM (991 SLPM) - Force: 1.9 lbs (862 g) - Sound Level: 82 dBA.

Also available: back blow models (examples: Model 1204SS-6-CS and 1206SS-6-CS) for clearing debris from pipes or tubes; these include a 6" aluminum extension and chip shield. Example performance: Air Consumption ~4.5 SCFM (127 SLPM) - Sound Level ~75 dBA (use with pipe inside diameters 1/4"–1").

Measurement note
Force measured at 12" (305 mm) from target. Sound level measured at 3' (914 mm). All measurements at 80 PSIG (5.5 BAR).

Characteristics / Technical specifications

• Commercial name: Soft Grip Safety Air Gun (available with various nozzle types and extensions)
• Example SKU (configurable): P1210-6
• Displayed price example: 149.20 USD (page price)
• Inlet: 1/4 FNPT (typical)
• Body material: cast aluminum with soft plastic grip
• Nozzle materials: Type 316 stainless steel, zinc aluminum alloy, PEEK thermoplastic
• Maximum nozzle temperatures: 316 SS up to 1000°F (538°C); Zinc aluminum up to 250°F (121°C); PEEK up to 320°F (160°C)
• Available accessories: aluminum extension pipes (various lengths), stay-set hose, coiled hose with swivel, chip shields
• Measuring conditions: data at 80 PSIG (5.5 BAR); force at 12" (305 mm); sound at 3' (914 mm)
• Safety/compliance: Engineered nozzles reduce compressed air use and comply with OSHA pressure standard 1910.242(b) and OSHA noise standard 29 CFR 1910.95(a)
