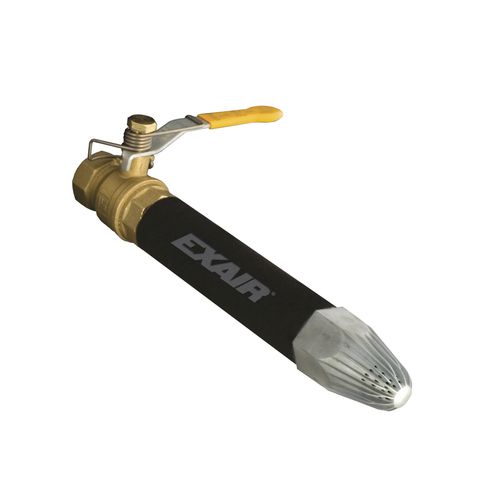

Safety air blow gun Model 1218-3 Super Blast

cleaningaluminummetal nozzle

Overview
The Super Blast Safety Air Gun 1213-4 delivers high blowing force for long-reach, wide-area blowoff, cooling and drying operations. Foam rubber grip ensures operator comfort and a spring-loaded valve automatically shuts off airflow if the tool is dropped. Supplied with a 1111-4 zinc-aluminum nozzle cluster and a 6' aluminum extension pipe for extended reach.

Applications

• Part cleaning
• Chip and debris removal
• Liquid blowoff
• Component cooling
• Drying operations

Advantages

• High blowing force for efficient blowoff
• Lightweight and comfortable for extended use
• Spring-loaded safety valve reduces accident risk
• Improved blowoff performance reduces cycle time
• Designed to meet OSHA noise and pressure requirements
• Options for nozzle material to suit application environment

Materials
Body: durable cast aluminum with foam rubber grip.
Nozzles: 316 stainless steel for high-temperature and corrosion resistance (max 1000°F / 538°C); zinc-aluminum alloy for general-purpose use (max 250°F / 121°C).

Accessories

• Aluminum Extension Pipe — extends reach; available lengths from 6" to 72" (page references 3' or 6' options)
• Coiled Hose with Swivel — heavy-duty compressed air hose, available in 12' length
• Chip Shields — polycarbonate shields to protect operators and control splashback

Technical characteristics / specifications

• Displayed product / SKU on page: P1213-4-6 (Product ID shown on page)
• Price (page): 441 (currency USD)
• Performance note: Force measured at 12" (305 mm) from target. Sound level measured at 3' (914 mm). All measurements taken at 80 PSIG (5.5 BAR).
• Model 1213-4 Super Blast Safety Air Gun — Nozzle: 1111-4 Zinc Aluminum Super Air Nozzle Cluster — Inlet: 3/8 FNPT — Air Consumption: 56 SCFM (1,585 SLPM) — Force*: 3.2 lbs (1.45 kg) — Sound Level: 82 dBA
• Model 1213-7 Super Blast Safety Air Gun — Nozzle: 1111-7 Zinc Aluminum Super Air Nozzle Cluster — Inlet: 1/2 FNPT — Air Consumption: 98 SCFM (2,773 SLPM) — Force*: 5.7 lbs (2.59 kg) — Sound Level: 85 dBA
• Model 1213-12 Super Blast Safety Air Gun — Nozzle: 1111-12 Zinc Aluminum Super Air Nozzle Cluster — Inlet: 1 FNPT — Air Consumption: 168 SCFM (4,754 SLPM) — Force*: 9.8 lbs (4.45 kg) — Sound Level: 89 dBA
• Model 1214SS Super Blast Safety Air Gun — Nozzle: 1112SS Stainless Steel Super Air Nozzle — Inlet: 3/4 FNPT — Air Consumption: 91 SCFM (2,577 SLPM) — Force*: 4.5 lbs (2.04 kg) — Sound Level: 96 dBA — Also available: 1214 with 1112 Zinc Aluminum Super Air Nozzle
• Model 1215SS Super Blast Safety Air Gun — Nozzle: 1114SS Stainless Steel Super Air Nozzle — Inlet: 1 FNPT — Air Consumption: 135 SCFM (3,823 SLPM) — Force*: 6.6 lbs (2.99 kg) — Sound Level: 99 dBA — Also available: 1215 with 1114 Zinc Aluminum Super Air Nozzle
• Model 1216 Super Blast Safety Air Gun — Nozzle: 1116 Zinc Aluminum Super Air Nozzle — Inlet: 1-1/4 FNPT — Air Consumption: 188 SCFM (5,324 SLPM) — Force*: 9.4 lbs (4.26 kg) — Sound Level: 102 dBA (†Without hearing protection, only use 1 hour per day)
• Model 1217 Super Blast Safety Air Gun — Nozzle: 1118 Zinc Aluminum Super Air Nozzle — Inlet: 1-1/4 FNPT — Air Consumption: 300 SCFM (8,495 SLPM) — Force*: 15.0 lbs (6.8 kg) — Sound Level: 106 dBA (†Without hearing protection, only use 1/2 hour per day)
• Model 1218 Super Blast Safety Air Gun — Nozzle: 1120 Zinc Aluminum Super Air Nozzle — Inlet: 1-1/4 FNPT — Air Consumption: 460 SCFM (13,026 SLPM) — Force*: 23.0 lbs (10.43 kg) — Sound Level: 109 dBA (†Without hearing protection, only use 1/2 hour per day)
• Model 1219SS Super Blast Back Blow Safety Air Gun — Nozzle: 1008SS Stainless Steel Back Blow Air Nozzle — Inlet: 1-1/4 FNPT — Air Consumption: 57 SCFM (1,614 SLPM) — Sound Level: 89 dBA — Use with inside diameters: 2" - 16" (51 - 406 mm)
• Selectable flow options (configurable on page): examples include 56, 57, 91, 98, 135, 168, 188, 300, 460 SCFM
