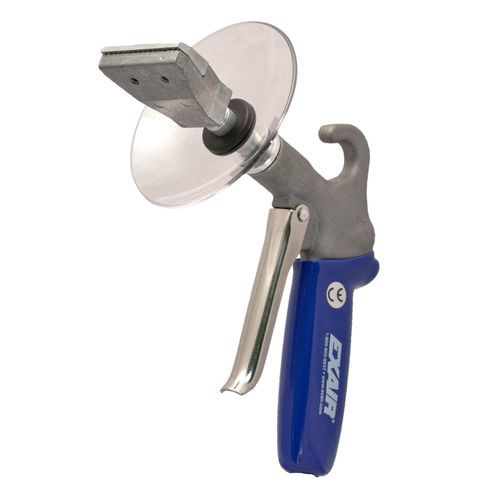

Cleaning air blow gun 1230SS-CS

aluminumsafetycomposite nozzle

Overview
Add an extension or Chip Shield to your Soft Grip Safety Air Gun. Adding an extension pipe increases the Soft Grip Safety Air Gun's cleaning and blowoff ability into hard-to-reach areas and adding a Chip Shield prevents chip blowback toward the operator. Extensions are available up to 72" long. The Soft Grip Safety Air Gun is ideal for hours of continuous use without fatigue. The ergonomic design keeps the hand in a comfortable position and incorporates a large trigger that permits operation with one or more fingers. The durable cast aluminum body is suited for rugged industrial use and includes a convenient hanger hook for easy storage. These guns with EXAIR engineered nozzles minimize compressed air use, maintain OSHA pressure standard 1910.242(b) and reduce noise exposure by remaining under OSHA standard 29 CFR 1910.95(a) decibel limits.

Applications

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Part drying

Advantages

• Lightweight
• Comfortable to operate during extended use
• Highly focused blast of air
• Small nozzle and extension can fit into tight spaces
• Reduced compressed air cost
• Improved blowoff performance
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements

Materials

• Soft Grip Safety Air Gun Body: durable cast aluminum with soft plastic grip
• Nozzle Options: Type 316 stainless steel nozzles (excellent corrosion resistance), Zinc aluminum alloy nozzles (general purpose), PEEK thermoplastic nozzles (protects from product scratches, excellent chemical resistance)
• Maximum temperatures: 316 stainless steel nozzles up to 1000°F (538°C); zinc aluminum alloy up to 250°F (121°C); PEEK up to 320°F (160°C)

Accessories

• Aluminum Extension Pipe: 1/8 NPT extension pipes available in lengths from 6" (152 mm) to 72" (1829 mm)
• Coiled Hose with Swivel: heavy duty compressed air coiled hose available in 12' (3.7 m) lengths

Performance / Models (data shown as reported on product page)
Model 1210SS-CS — Nozzle: 1100SS Stainless Steel Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 14 SCFM / 396 SLPM
Force*: 13 Ozs / 369 grams
Sound Level: 74 dBA

Model 1210-CS
Also referenced variants include 1210 with zinc aluminum and 1210-PEEK with PEEK nozzle options.

Model 1296SS-CS — Nozzle: 1108SS Stainless Steel Atto Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 2.5 SCFM / 71 SLPM
Force*: 2.0 Ozs / 56.7 grams
Sound Level: 58 dBA

Model 1297SS-CS — Nozzle: 1109SS Stainless Steel Pico Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 4.9 SCFM / 139 SLPM
Force*: 5.0 Ozs / 142 grams
Sound Level: 68 dBA

Model 1298SS-CS — Nozzle: 1110SS Stainless Steel Nano Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 8.3 SCFM / 235 SLPM
Force*: 8.1 Ozs / 230 grams
Sound Level: 75 dBA

Model 1299SS-CS — Nozzle: 1103SS Stainless Steel Mini Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 10 SCFM / 283 SLPM
Force*: 9.0 Ozs / 255 grams
Sound Level: 71 dBA

Model 1229SS-CS — Nozzle: 1126SS Stainless Steel 1" Flat Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 10.5 SCFM / 297 SLPM
Force*: 9.8 Ozs / 278 grams
Sound Level: 75 dBA

Model 1290SS-CS — Nozzle: 1009SS Stainless Steel Adjustable Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 13 SCFM / 368 SLPM
Force*: 12 Ozs / 340 grams
Sound Level: 79 dBA

Model 1280SS-CS — Nozzle: 1010SS Stainless Steel Micro Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 13 SCFM / 368 SLPM
Force*: 12 Ozs / 340 grams
Sound Level: 80 dBA

Model HP1229SS-CS — Nozzle: 1126SS Stainless Steel 1" High Power Flat Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 17.5 SCFM / 495 SLPM
Force*: 16 Ozs / 462 grams
Sound Level: 82 dBA

Model 1230SS-CS — Nozzle: 1122SS Stainless Steel 2" Flat Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 22 SCFM / 622 SLPM
Force*: 22 Ozs / 624 grams
Sound Level: 77 dBA

Model 1250SS-CS — Nozzle: 1104SS Stainless Steel Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 35 SCFM / 991 SLPM
Force*: 1.9 lbs / 862 grams
Sound Level: 82 dBA

Model HP1230SS-CS — Nozzle: HP1125SS Stainless Steel 2" High Power Flat Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 37 SCFM / 1,039 SLPM
Force*: 2.2 lbs / 998 grams
Sound Level: 83 dBA

Model 1240 — Nozzle: 1111-4 Zinc Aluminum Air Nozzle Cluster
Inlet: 1/4 FNPT
Air Consumption: 56 SCFM / 1,585 SLPM
Force*: 3.2 lbs / 1,451 grams
Sound Level: 82 dBA

Model 1260SS-CS — Nozzle: 1106SS Stainless Steel Super Air Nozzle
Inlet: 1/4 FNPT
Air Consumption: 60 SCFM / 1,699 SLPM
Force*: 3.3 lbs / 1,497 grams
Sound Level: 87 dBA

Soft Grip Back Blow Safety Air Guns (examples)
Model 1204SS-6-CS
Nozzle: 1004SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension, Chip Shield
Air Consumption: 4.5 SCFM / 127 SLPM
Sound Level: 75 dBA
Use with inside diameters: 1/4" - 1" (6.3 - 25.4 mm)

Model 1206SS-6-CS
Nozzle: 1006SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension, Chip Shield
Air Consumption: 22 SCFM / 622 SLPM
Sound Level: 80 dBA
Use with inside diameters: 1/4" - 1" (6.3 - 25.4 mm)

Notes
*Force measured at 12" (305 mm) from target. Sound level measured at 3' (914 mm). All measurements taken at 80 PSIG (5.5 BAR).

Caractéristiques / spécifications techniques

• Denomination commerciale: Soft Grip Safety Air Gun (family of safety air guns with nozzles and chip shield options)
• Model example / SKU on page: P1210-CS (configurable product variant)
• Body material: cast aluminum with soft plastic grip
• Nozzle materials: 316 stainless steel, zinc aluminum alloy, PEEK thermoplastic (with respective max temperatures: 538°C / 121°C / 160°C)
• Inlet: 1/4" FNPT (typical for listed models)
• Extension pipes: 1/8 NPT extensions available 6" to 72" (152 mm to 1,829 mm)
• Accessories: Chip Shield, aluminum extension pipes, coiled hose with swivel (12' length available)
• OSHA compliance: designed to meet OSHA pressure standard 1910.242(b) and OSHA noise level standard 29 CFR 1910.95(a) where applicable
• Price (as shown on page): 161.30 USD (per piece)
• Measurements basis: force at 12" (305 mm); sound at 3' (914 mm); all at 80 PSIG (5.5 BAR)
