Stainless steel quarter-turn fastener QCFC

spring

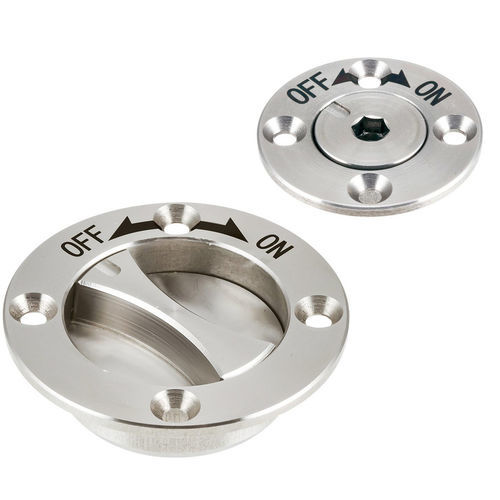

Provides positive locking in quick-change applications where fasteners are frequently inserted and removed. Ensures consistent clamping force to prevent under- or over-tightening by the operator. The flat profile with recessed knob and body minimizes interference. Designed for use with QCFC-B receptacles (sold separately). The fastener mounts to the fixture and the receptacle mounts to the base. As the fastener is inserted into the receptacle, the pins align with the grooves. The internal spring accommodates fixture thicknesses of 6 mm or more. Fasteners are marked with "ON" and "OFF" indicators to show pin position. Four recessed countersunk head screws for mounting are included (M2.5X0.45-5L). Body, knob, spring and screws are made from stainless steel.


Available variants (table)
Part Number | Plate Thickness Range (mm) | D (mm) | H (mm) | Clamping Force (Lbs) | Holding Force (Lbs) | Use with Receptacle
QCFCH0628-SUS | 6 or more | 28 | 10.7 | 13.5 | 13.5 | QCFCH0628-B-SUS
QCFC0639-SUS | 6 or more | 39 | 16.5 | 6.7 | 6.7 | QCFC0639-B-SUS

Characteristics / technical specifications

• Model: QCFC
• Flat profile with recessed knob and body to minimize interference
• Material: body, knob, spring and screws made from stainless steel
• Range of fixture thicknesses supported: 6 mm or more
• Mounting: four countersunk recessed head screws included (M2.5X0.45-5L)
• Fasteners marked with "ON" and "OFF" indicators for pin position
• Designed to be used with QCFC-B receptacles (receptacles sold separately)
• Available overall diameters: 28 mm and 39 mm (variant dependent)
• Examples of variant dimensions and forces: 28 mm D / H 10.7 mm — clamping/holding 13.5 lbs; 39 mm D / H 16.5 mm — clamping/holding 6.7 lbs
