Zinc-plated steel quarter-turn fastener QCSJ

for panelscam

Product overview
These cam receptacles are designed for use with quarter-turn shaft-mount fasteners (one-touch). Available in plate-mount and shaft-mount configurations. Manufactured from 4140 steel with an electroless-plated finish for consistent surface protection. Suitable for industrial assemblies requiring quick engagement and repeatable positioning.

Product types
Flanged plate receptacles compatible with QCSJ series shaft-mount fasteners. Steel body in plate-mount configuration for panel or bracket installation.

Selected part

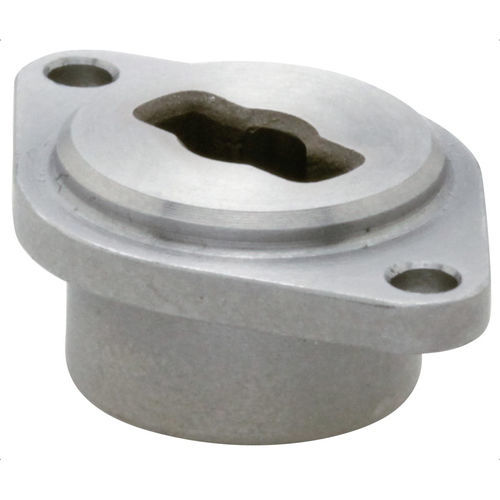

CAM RECEPTACLE - PLATE MOUNT

Part options / Table
ID: 134103
SKU: QCSJ0514-B
Part Number: QCSJ0514-B
D (mm): 5
D1 (mm): 14
D2 (mm): 13
L (mm): 25
L1 (mm): 21
H (mm): 8 (to top of flange)
H1 (mm): 1.5 (shoulder height)
H2 (mm): 2 (flange height)
W (mm): 17 (overall width)
SHCS Size: M2x0.4-5L
Use with Shaft Coupling Clamp: QCSJ0514A


Technical specifications

• Material: 4140 steel
• Finish: electroless plated
• Mounting type: plate mount (also available in shaft mount configurations)
• Pin Slot Diameter: 5 mm
• Shoulder Diameter (D1): 14 mm
• Base Diameter (D2): 13 mm
• Overall Length (L): 25 mm
• Between Mounting Holes Length (L1): 21 mm
• To top of Flange Height (H): 8 mm
• Shoulder Height (H1): 1.5 mm
• Flange Height (H2): 2 mm
• Overall Width (W): 17 mm
• SHCS Size: M2x0.4-5L
• Compatible shaft coupling clamp: QCSJ0514A
