Stainless steel quarter-turn fastener QCFC-B

for panels

Description

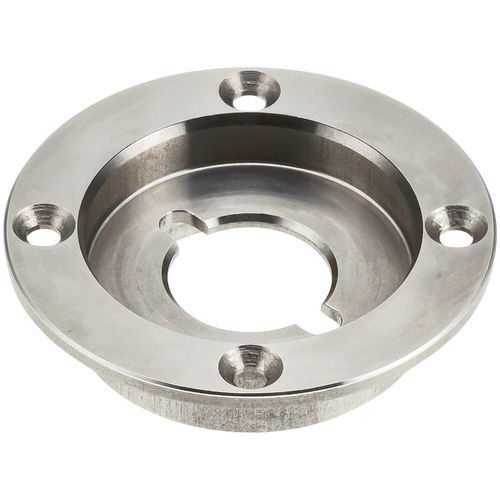

Receptacle designed for use with QCFC flat-profile quarter-turn clamping fasteners. Installed using four recessed countersunk head screws (included: M2.5X0.45-5L). Suitable for mounting on plates with thickness of 6 mm or greater. Body manufactured from 303 stainless steel; fastener screws in stainless steel.

Product Types
Receptacles for QCFC flat clamping fasteners. Variants differ by overall diameter (D) and overall height (H) to suit application and panel design.

Available Parts (table)
Header: ID | SKU | Part Number | Plate Thickness Range (mm) | D | H | Use with 1/4 Turn Fastener | PN
189643 | QCFCH0628-B-SUS | QCFCH0628-B-SUS | 6 or more | 28 | 5.2 | CFCH0628-SUS |
189511 | QCFC0639-B-SUS | QCFC0639-B-SUS | 6 or more | 42 | 10.5 | QCFC0639-SUS |

Technical specifications

• Intended use: for QCFC flat-profile quarter-turn clamping fasteners
• Mounting: secured with four recessed countersunk head screws (included) — M2.5X0.45-5L
• Mounting plate thickness: 6 mm or more
• Body material: 303 stainless steel
• Screw material: stainless steel
• Available overall diameters (D): 28 mm and 42 mm
• Available overall heights (H): 5.2 mm and 10.5 mm
• Example part SKUs: QCFCH0628-B-SUS, QCFC0639-B-SUS
