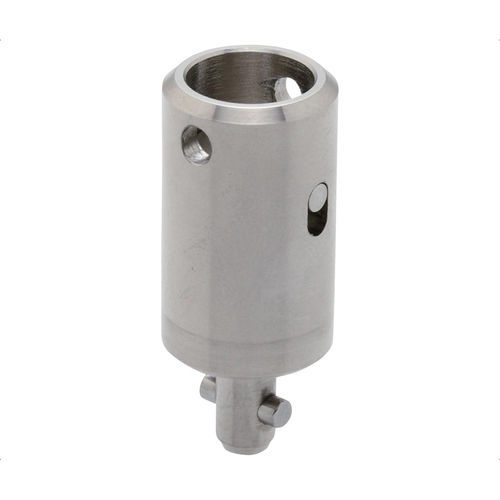

Stainless steel quarter-turn fastener QCSJ

cam

Product description
These shaft-mount, quarter-turn fasteners provide positive locking for quick-change fixtures where frequent insertion and removal occur. Designed for use with QCSJ-series cam receptacles, the fastener is mounted to a shaft for extended reach while the receptacle is mounted to the base. During insertion the fastener pins engage the receptacle grooves; a quarter-turn rotation aligns and locks the fastener, delivering a consistent clamping force and reducing the potential for under- or over-tightening by the operator. Body and shank are 1045 steel with an electroless nickel plated finish. Pin is 304 stainless steel. Spring is 304-CSP stainless steel.

Available part(s)

• QCSJ0514A — Shaft mount fastener, S45 steel

Part table (selected part)
ID: 134102
SKU: QCSJ0514A
Part Number: QCSJ0514A
D (mm): 5
D1 (mm): 14
D2 (mm): 3
L (mm): 9.5
H (mm): 23.5
H1 (mm): 20
Clamping Force (Lbs): 13.5
Use with Receptacle: QCSJ0514-S/-B


Technical features / Specifications

• Shaft-mount quarter-turn fastener for quick-change fixtures
• Operation: insert pins into receptacle grooves, rotate one quarter turn to lock
• Designed for frequent insertion/removal; provides consistent fastening force
• Body and shank material: 1045 steel with electroless nickel plated finish
• Pin material: 304 stainless steel
• Spring material: 304-CSP stainless steel
• Typical use: used with QCSJ-series cam receptacles (receptacle mounted to base)
• Selected part key dimensions and data: see part table above
