Push-fit quarter-turn fastener QCSJ-S

stretch-fit

Description

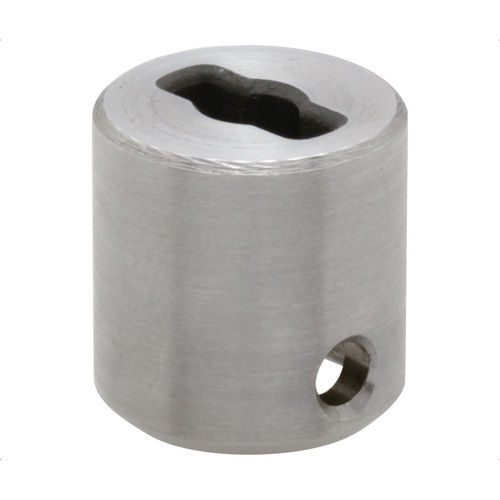

Quarter-turn shaft-mount receptacles designed for use with QCSJ series shaft-mount quarter-turn fasteners. Available in plate-mount and shaft-mount configurations. Machined from 4140 steel and finished with electroless nickel plating for uniform corrosion protection and consistent tolerances. Intended for industrial assemblies requiring secure quarter-turn engagement and repeatable alignment. Installation typically by press-fit or clamp to shaft following fastener series guidelines.

Part Options / Table
ID | SKU | Part Number | D (mm) D+.08/+.04 | D1 (mm) | D2 (mm) h9 | H (mm) | H1 (mm) | Use With Shaft Coupling Clamp
136795 | QCSJ0514-S | QCSJ0514-S | 5 | 3 | 14 | 14.5 | 11 | QCSJ0514A

Product Types

• Receptacles: plate-mount and shaft-mount configurations
• Use: For quarter-turn shaft-mount fasteners (QCSJ series)

Specifications / Technical data

• Model: QCSJ-S
• Compatible fastener series: QCSJ shaft-mount fasteners
• Available configurations: plate mount, shaft mount
• Material: 4140 steel
• Finish: electroless nickel-plated
• Example part (from table): QCSJ0514-S — D: 5 mm; D1: 3 mm; D2: 14 mm; H: 14.5 mm; H1: 11 mm; Use with: QCSJ0514A
