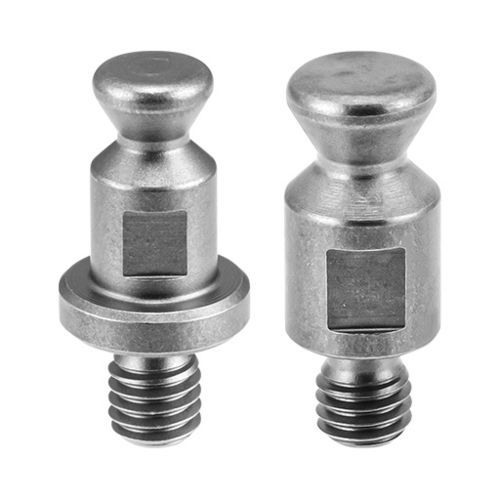

Heavy load quick-release pin QCPCS-M

stainless steel

Description
Clamping pins designed for use with QCPCS series heavy-duty pin-holding fasteners. They install quickly in a single tapped hole and are available with different pin types to match required allowable loads. Standard material: 630 stainless steel.

Use
Intended for assembly with QCPCS heavy-duty fasteners; optimized for rapid mounting in a single tapped hole. Select pin type and thread size according to load and mating fastener.

Available Part Options (excerpt)

• 150620 | QCPCS0625-M4-SUS | Type B | Thread M4×0.70 | D 6 | D1 - | W 5 | H1 13 | H2 4.0 | Use with QCPCS0625-20, QCPCS0625-20-SUS
• 150624 | QCPCSF0625-M5-SUS | Type A | Thread M5×0.80 | D 6 | D1 9 | W 5 | H1 16 | H2 4.0 | Use with QCPCS0625-20, QCPCS0625-20-SUS
• 150623 | QCPCS0834-M5-SUS | Type B | Thread M5×0.80 | D 8 | D1 - | W 7 | H1 14 | H2 4.5 | Use with QCPCS0834-20, QCPCS0834-20-SUS
• 150625 | QCPCSF0625-M6-SUS | Type A | Thread M6×1.00 | D 6 | D1 9 | W 5 | H1 16 | H2 4.0 | Use with QCPCS0625-20, QCPCS0625-20-SUS
• 150626 | QCPCSF0834-M6-SUS | Type A | Thread M6×1.00 | D 8 | D1 12 | W 7 | H1 17 | H2 4.5 | Use with QCPCS0834-20, QCPCS0834-20-SUS

Part option controls on page

• Thread mm: M4×0.70, M5×0.80, M6×1.00
• Body Diameter mm: 6, 8

Technical specifications

• Material: 630 stainless steel
• Mounting: installs in a single tapped hole
• Available mounting thread sizes: M4×0.70, M5×0.80, M6×1.00
• Two pin types available to suit different allowable loads
• Designed for use with QCPCS heavy-duty pin-holding fasteners
• Typical SKUs and dimensional data provided in part options (thread, body diameter, widths, heights)
