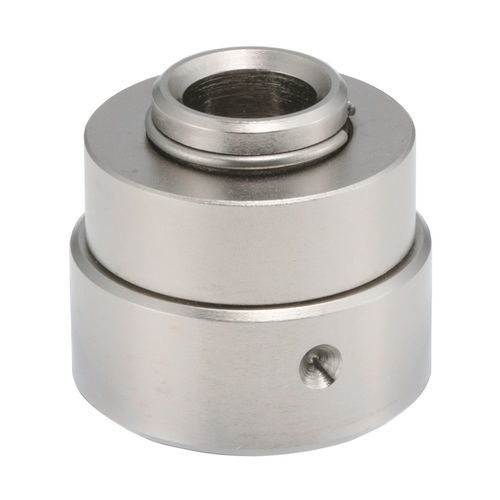

Industrial fastener QCSJS-S

steelcorrosion-resistant

Overview
These receptacles are designed for QCSJS-series heavy-duty shaft-mount fasteners. Body machined from 1045 steel with a nickel-plated finish; compatible with coupling clamp QCSJS0822A.

Product Line / Use
Steel-body receptacle for QCSJS heavy-duty shaft-mount fasteners. Intended for industrial shaft coupling and quick-assembly applications where a shaft-mounted one-touch solution is required.

Part Options (excerpt)

• ID | SKU | Part Number | D (mm) | D1 (mm) | For use with coupling clamp
• 142230 | QCSJS0822-S | QCSJS0822-S | 22 | 8 | QCSJS0822A

Product Types

• Receptacles for QCSJS heavy-duty shaft-mount fasteners

Technical specifications

• Body material: 1045 steel, nickel-plated finish
• Series: QCSJS-S
• Selected part / SKU: QCSJS0822-S
• Part ID: 142230
• Base Diameter (D): 22 mm
• Head Diameter (D1): 8 mm
• For use with coupling clamp: QCSJS0822A
