Stainless steel quick-release pin QCMA

Description

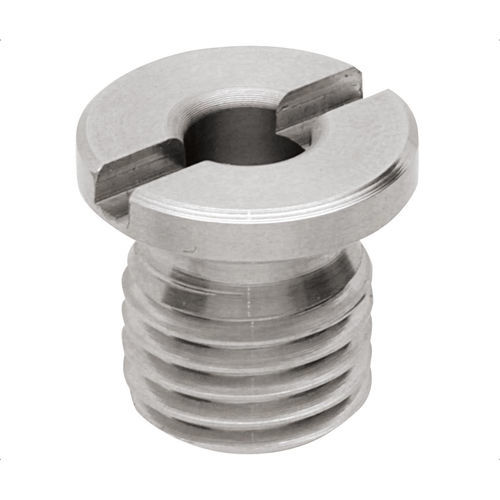

The magnetic receptacle is designed to receive magnetic locking pin QCMA0612-M and provide light-duty holding in quick-change fixture applications. As the pin is inserted, the neodymium magnet in the receptacle retains the pin for repeatable positioning. The receptacle can be installed in a blind hole or fastened into a base using the stainless lock nut (sold separately). Body material and magnet selection make it suitable for accurate locating and frequent insertion/removal cycles in industrial fixtures.

Selected Part

• Part Number: QCMA0612A
• Product Name: Magnetic Clamp Receptacle

Part Details

• Thread mm: M12 x 1.5 (fine thread)
• Inside Diameter mm: 6
• Flange Diameter mm: 16
• Overall Length mm: 15
• Flange Length mm: 3
• Slot Length mm: 2
• Slot Width mm: 2.5
• Clamping Force (lbs): 1.6
• Use with Clamping Pin: QCMA0612-M4

Product Types / Notes

• Stainless steel body (303)
• Receptacle contains a neodymium magnet
• Intended for light-duty holding in quick-change fixtures
• Suitable for blind-hole installation or fastening with stainless lock nut (lock nut ordered separately)
• Can be used with locating pins for accurate positioning

Specifications

• Material: 303 stainless steel
• Magnet: neodymium
• Thread: M12 x 1.5 (fine)
• Inside Diameter: 6 mm
• Flange Diameter: 16 mm
• Overall Length: 15 mm
• Flange Length: 3 mm
• Slot Length: 2 mm
• Slot Width: 2.5 mm
• Clamping Force: 1.6 lbs
• Compatible Clamping Pin: QCMA0612-M4
• Mounting: use with stainless lock nut or for blind-hole installation (lock nut sold separately)
