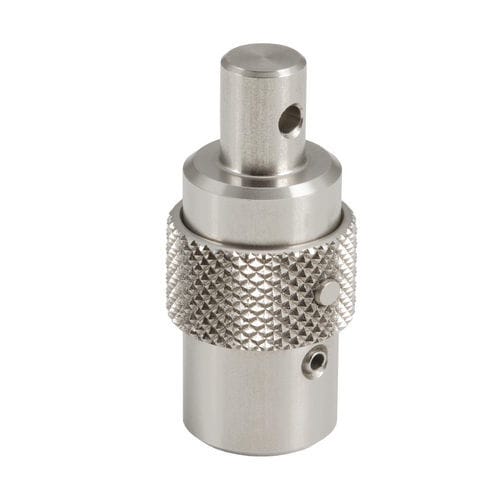

Stainless steel quarter-turn fastener QCSJLK

cam

Product description
This shaft coupling clamp locks onto a receptacle by rotating the shaft 90°. A spring pin (not included) secures the clamp into the cam groove of the receptacle. To unclamp, push up the collar and rotate the shaft in the opposite direction. Body material: 303 stainless steel. Suitable for quick, repeatable axial locking applications in mechanical assemblies.

Part options (table)

• ID: 150288 | SKU: QCSJLK1118A | Part Number: QCSJLK1118A | D: 8 mm | Collar Diameter: 18 mm | Shaft Diameter: 15 mm | Hole Diameter: 3 mm | Diameter: 11 mm | Body Height: 32.5 mm | Pin Height: 12 mm | Body-to-Thru-Hole Center Height: 6 mm

Technical specifications

• Operation: locks onto receptacle by turning shaft 90°; push up collar and turn shaft the opposite way to unclamp
• Requires a spring pin (not included) to lock clamp onto the cam groove of the receptacle
• Body material: 303 stainless steel
• Pin Diameter: 8 mm
• Collar Diameter: 18 mm
• Shaft Diameter: 15 mm
• Hole Diameter: 3 mm
• Diameter: 11 mm
• Body Height: 32.5 mm
• Pin Height: 12 mm
• Body-to-Thru-Hole Center Height: 6 mm
