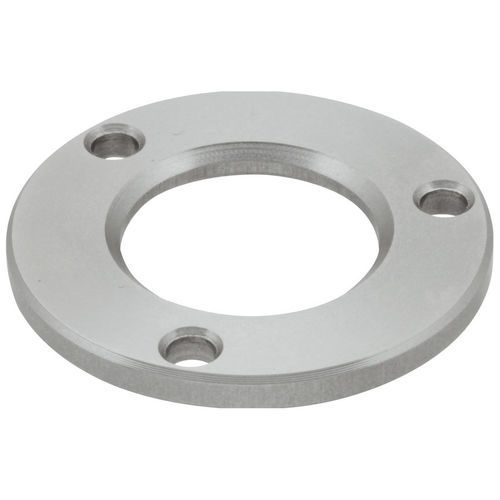

Stainless steel spacer QCASP series

Description
This spacer is designed for use with the quarter-turn One-Touch clamping fasteners listed below. It positions and supports the clamping head to ensure correct engagement and even load distribution. Mounting is performed with the supplied countersunk head screws. Manufactured in 303 stainless steel for corrosion resistance in industrial environments.

Product Types

• QCASP — Spacers for One-Touch clamping fasteners

Available Parts

• ID 150286 — QCASP25-03-SUS: D=25 mm, D1=14 mm, D2=2.3 mm, Dp=21 mm, H=3 mm; compatible with: QCTH, QCTHL, QCTHH, QCTHA, QCTHS, QCWE, QCPC, QCPCS
• ID 150287 — QCASP34-03-SUS: D=34 mm, D1=18 mm, D2=3.5 mm, Dp=28 mm, H=3 mm; compatible with: QCTH, QCTHL, QCTHH, QCTHA, QCTHS, QCWE, QCPC, QCPCS

Media

• Selection Guide - One-Touch Fasteners (PDF)
• Specifications (PDF)

Features / Technical Specifications

• Material: 303 stainless steel
• Mounting: use the included countersunk head screws
• Compatible clamp series: QCTH, QCTHL, QCTHH, QCTHA, QCTHS, QCWE, QCPC, QCPCS
• Available parts and key dimensions: QCASP25-03-SUS (D=25 mm, D1=14 mm, D2=2.3 mm, Dp=21 mm, H=3 mm); QCASP34-03-SUS (D=34 mm, D1=18 mm, D2=3.5 mm, Dp=28 mm, H=3 mm)
