Stainless steel quarter-turn fastener QCTHA series

plasticfor panelscam

Product Overview

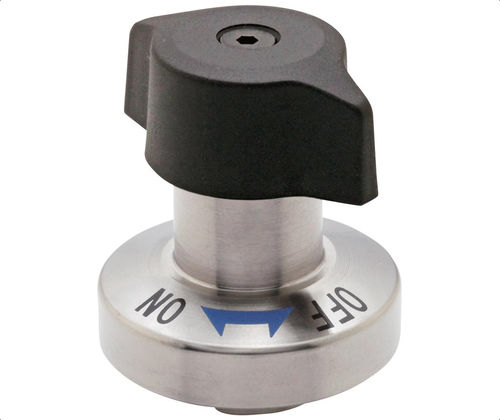

These retractable fasteners provide positive locking in quick change applications where there is frequent insertion and removal of a fixture. They allow for consistent fastening force eliminating the chance for under or over tightening by the operator. They are designed to be used with cam receptacles (QCTH-N and QCTH-B Series). Three socket head cap screws for mounting are included (M3X0.5 - 6 mm long). The bodies and shanks are made from 1045 carbon steel with an electroless nickel plated finish, or 303 stainless steel. The pins are made from 304 stainless steel. The knob is made from black plastic or 304 stainless steel.

Operation
Pulling up on the handle allows the plate or fixture to slide on the base without interference from the fastener. As the fastener is inserted into the receptacle, the pins on the fastener align with the grooves in the receptacle. Turning the knob one quarter turn aligns and locks the fastener into place. The fasteners are marked with "ON" and "OFF" indicators to show the position of the fastening pins.

Product Types

• QCTHA — Retractable, plastic or stainless knob; steel or stainless shank. Designed for use with QCTH-N and QCTH-B cam receptacles.

Part Options (table)
ID | SKU / Part Number | Knob Material | Shank Material | Plate Thickness mm | Thread | D (-0.04/-0.08) | D1 h9 | D2 | D3 | Dp P.C.D. | L | H | H1 | H2 | Clamping Force (Lbs) | Receptacle Part Series
134099 | QCTHA0525-10 | Plastic | Steel | 6 to 10 | M2x0.40 - Depth 3 | 5 | 14 | 25 | 25 | 21 | 15.5 | 20 | 30 | 6.5 | 13.5 | QCTH-N, QCTH-N-SUS, QCTH-B, QCTH-B-SUS
134101 | QCTHA0525-10S | Stainless (knob) | Steel | 6 to 10 | M2x0.40 - Depth 3 | 5 | 14 | 25 | 25 | 21 | 15.5 | 20 | 30 | 6.5 | 13.5 | QCTH-N, QCTH-N-SUS, QCTH-B, QCTH-B-SUS
137021 | QCTHA0525-10SUS | Stainless | Stainless | 6 to 10 | M2x0.40 - Depth 3 | 5 | 14 | 25 | 25 | 21 | 15.5 | 20 | 30 | 6.5 | 13.5 | QCTH-N, QCTH-N-SUS, QCTH-B, QCTH-B-SUS
134098 | QCTHA0834-14 | Plastic | Steel | 6 to 14 | M3x0.40 - Depth 3 | 8 | 18 | 34 | 34 | 28 | 17 | 26.5 | 38 | 10 | 20.2 | QCTH-N, QCTH-N-SUS, QCTH-B, QCTH-B-SUS
134100 | QCTHA0834-14S | Stainless (knob) | Steel | 6 to 14 | M3x0.40 - Depth 3 | 8 | 18 | 34 | 34 | 28 | 17 | 26.5 | 38 | 10 | 20.2 | QCTH-N, QCTH-N-SUS, QCTH-B, QCTH-B-SUS
137022 | QCTHA0834-14SUS | Stainless | Stainless | 6 to 14 | M3x0.40 - Depth 3 | 8 | 18 | 34 | 34 | 28 | 17 | 26.5 | 38 | 10 | 20.2 | QCTH-N, QCTH-N-SUS, QCTH-B, QCTH-B-SUS


Caractéristiques / Spécifications techniques

• Model / Series: QCTHA (Quarter-Turn, Retractable)
• Designed use: Quick-change fixtures; pairs with cam receptacles QCTH-N and QCTH-B series
• Mounting hardware included: Three socket head cap screws, M3 x 0.5, 6 mm long
• Bodies & shanks: 1045 carbon steel with electroless nickel plating, or 303 stainless steel
• Pins: 304 stainless steel
• Knob options: Black plastic or 304 stainless steel
• Marked positions: "ON" and "OFF" indicators for fastening pin position
• Available threads/variants: M2 x 0.40 and M3 x 0.40 thread variants (see part options table for complete dimensional data)
