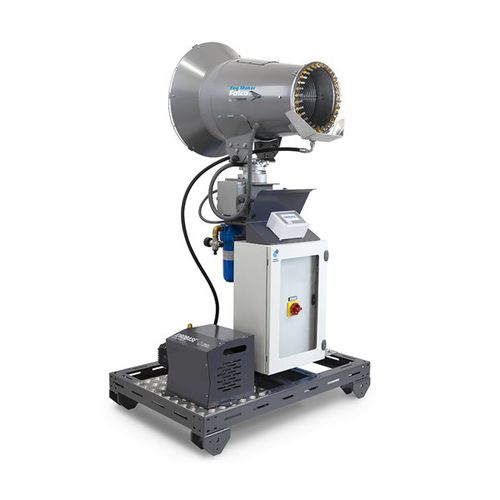

Dust control fog cannon Falco

temperature controlfor disinfectionfor environment sanitization

Overview
Industrial high-pressure fogging system for humidification, cooling, dust suppression and surface treatment. Brushless motor, user-friendly touchscreen control and optional remote management for integration into site automation.

Technical data
CODE | Model | Pressure | Flow rate | Drop size | Rotating range | Power (3x400V-50Hz) | Weight | Dimensions LxPxH (mm) | Preventive maintenance 750hrs (standard) | Preventive maintenance 1500hrs (optional)
ZX.8410 | Falco 11LPM | 70bar | 11l/min | 18μm | 330° automatic | 3.7Kw | 210kg | 1200x800x1850mm | ZX.75IBG02 | ZX.150IBG02
ZX.8411 | Falco 15LPM | 80bar | 15l/min | 24μm | 330° automatic | 4.4Kw | 215kg | 1200x800x1850mm | ZX.75IBG03 | ZX.150IBG03
ZX.8416 | Falco 6LPM | 80bar | 6.5l/min | 12μm | 330° automatic | 3.7Kw | 210kg | 1200x800x1850mm | ZX.75IBG10 | ZX.150IBG10

Technical features

• Painted steel frame with cathodic dip coating for corrosion resistance
• Electrical control panel with 4.3” touchscreen and PLC for fan, pump, rotation, work cycles and preventive maintenance scheduling
• Protection rating: IP55
• Overall dimensions: 1200 x 800 x 1850 mm

Fan technical specifications

• Nozzle ring: AISI 304 stainless steel with 30 nozzles
• Coverage area: up to 1500 m²
• Power absorption: 2.2 kW, 2800 rpm
• Fan jet range: approx. 25 m (ambient 21°C, no wind)
• Power supply: 3x400V – 50Hz
• Rotation: 330° automatic
• Elevation: -20° to +30° manual
• Fan diameter: 410 mm
• Noise: < 87 Lwa

Pump module technical specifications

• Pressure: 70 bar for 11 l/min model; 80 bar for 6.5 and 15 l/min models
• Professional pump 1450 rpm, rod movement, brass head, 3 ceramic pistons
• Electric motor: 1450 rpm — 1.5 kW for 6.5 and 11 l/min; 2.2 kW for 15 l/min
• Integrated bypass valve
• Low-pressure water switch
• Unload solenoid valve

Optionals

• ZX.2322 — Water hardness analysis kit
• ZX.0905-10 — Water supply kit, 10 m with quick-screw couplings
• ZX.1262 — Mechanical proportional dispenser 0.2–2% kit with tank
• ZX.1277 — Ethernet remote control kit for PLC
• ZX.1279 — Wi‑Fi remote control kit for PLC
• ZX.2352-15 — Washing kit with gun, double lance, 10 m hose and lance housing (for 15 l/min version)
• ZX.KSFM3 — Sterilizer kit for Fog Maker Falco, Rino and Elefante

Technical specifications (summary)

• Series / product name: Falco (Fog Maker)
• Available codes/models: ZX.8410 (Falco 11LPM), ZX.8411 (Falco 15LPM), ZX.8416 (Falco 6LPM)
• Pressure range: 70 bar (11 l/min) and 80 bar (6.5 & 15 l/min)
• Flow rates: 6.5 l/min, 11 l/min, 15 l/min (model dependent)
• Drop sizes: 12 μm, 18 μm, 24 μm (model dependent)
• Rotation: 330° automatic
• Main power: typically 3.7 kW (up to 4.4 kW for 15 LPM)
• Weight: approx. 210–215 kg (model dependent)
• Dimensions (LxPxH): 1200 x 800 x 1850 mm
• Protection rating: IP55
• Fan coverage: up to 1500 m²; fan jet approx. 25 m (no wind, 21°C)
• Fan diameter: 410 mm
• Noise: < 87 Lwa
• Control: 4.3" touchscreen + PLC; optional remote management (Ethernet / Wi‑Fi)
• Frame: painted steel via cathodic dip coating
