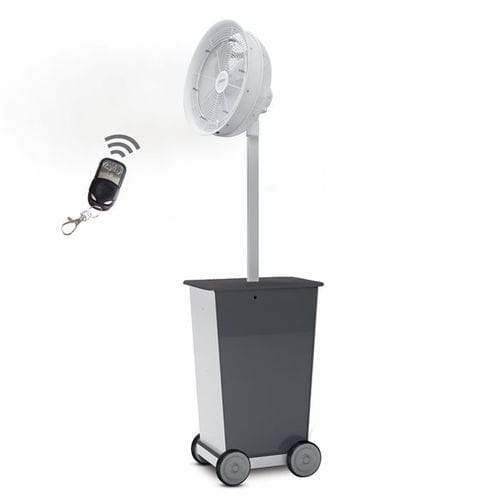

Commercial mist system ZX.5051-90RC

for dust suppressiondisinfectantoutdoor

Overview
Multifunctional indoor/outdoor furniture with integrated sterilizing mist system, designed for commercial and professional environments to cool, deodorize and improve air quality.

Product type
Outdoor misting unit with UV sterilization and adjustable nebuliser height for terrace, hospitality and event applications.

Operation
The system generates a fine mist that lowers ambient temperature through evaporative cooling, suppresses airborne dust and cigarette smoke, neutralizes unpleasant odours and helps limit flying insects in the treated area.

Sterilizer
Integrated UV sterilizer treats the water before emission by exposing it to germicidal wavelengths that damage microorganism DNA, preventing reproduction and reducing biological contamination in the aerosol.

Remote control
Remote management capability for on/off and cycle settings; compatible with optional WiFi control module for smartphone operation.

Benefits

• Significant local temperature reduction
• Effective dust and particulate suppression
• Repels mosquitoes and flying insects
• Neutralizes unpleasant odours
• Durable construction for long service life
• Weather-resistant components for outdoor use
• Designed specifically for commercial outdoor spaces

Options

• IT.UV-5W - UV Sterilizer
• ZX.2373 - WiFi socket for ON/OFF control by smartphone
• PC.KXC-01 - Adjustable nickelled brass adapter
• IT.0581 - Water supply kit with mesh filter and Fog module, 3 m water connection pipe
• ZX.KT05 - Preventive maintenance kit

Technical data
CODE: ZX.5051-90RC
Height of the nebuliser: 230 cm
Air flow rate: 9.000 m3/h
Rotation 90°: ✔
Misting covered area: 50 m2
Water pressure: 60 bar
Analogue timer for pause/work cycles: ✔
Total power (fan + motor pump): 325 W

Technical specifications

• Code: ZX.5051-90RC
• Height of the nebuliser: 230 cm
• Air flow rate: 9.000 m3/h
• Rotation: 90°
• Misting covered area: 50 m2
• Water pressure: 60 bar
• Analogue timer: yes
• Total power (fan + motor pump): 325 W
