Environment sanitization fog cannon Elefantino DOS

for odor controlfor disinfectionmobile

Product overview

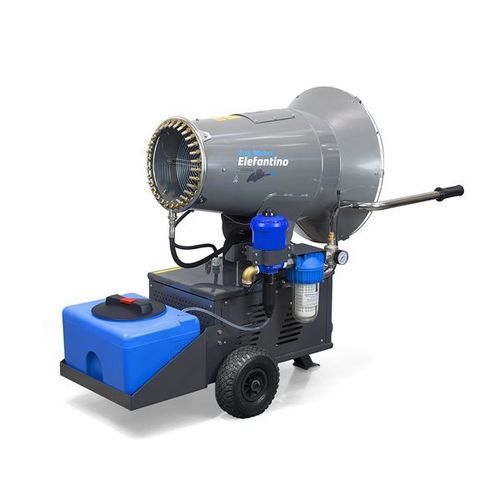

The Elefantino DOS is a trolley-mounted, high-pressure fogging machine designed for sanitization and odor suppression of medium to large indoor and semi-outdoor areas. It delivers fine atomised droplets and integrates dosing for disinfectant or deodorant solutions.

Key applications

• Sanitization of warehouses, production halls, public buildings and transport hubs
• Odour control in waste plants, processing areas and loading bays
• Controlled application of treatment solutions with proportional dosing
• Temporary or mobile operations requiring rapid deployment

Models and technical data

• Elefantino DOS 6.5 — Pressure: 80 bar; Flow: 6.5 L/min; Drop size: 12 µm; Power (motor): 3.7 kW; Weight: 107 kg; Dimensions (WxLxH): 640×920×1050 mm
• Elefantino DOS 11 — Pressure: 70 bar; Flow: 11 L/min; Drop size: 18 µm; Power (motor): 3.7 kW; Weight: 107 kg; Dimensions: 640×920×1050 mm
• Elefantino DOS 15 — Pressure: 80 bar; Flow: 15 L/min; Drop size: 24 µm; Power (motor): 4.4 kW; Weight: 110 kg; Dimensions: 640×920×1050 mm
• Elefantino DOS 21 — Pressure: 70 bar; Flow: 21 L/min; Drop size: 24 µm; Power (motor): 5.2 kW; Weight: 133 kg; Dimensions: 640×920×1050 mm

Technical features

• Frame in painted steel sheet for industrial environments
• Pneumatic wheels and lifting hook for mobility
• ON‑OFF control panel for pump and fan
• Fan jet up to 21 m (measured at 21°C, no wind) and fan diameter 410 mm
• Typical coverage: 150 m²
• Elevation: manual 0° to +40°
• Nozzle ring in AISI 304 stainless steel with 30 nozzles
• 30 L tank for solution; water inlet kit with pressure stabiliser
• Mechanical proportional dosing 0.2–2% for controlled chemical injection
• Pump module: 1450 rpm, rod movement, brass head, 3 ceramic pistons; integrated by‑pass valve
• Electric motor options (1450 rpm): 1.5 kW (6.5 & 11 L/min), 2.2 kW (15 L/min), 3.0 kW (21 L/min)
• Protection rating: IP54; Noise: < 87 Lwa
• Preventive maintenance: standard 750 hrs, optional 1500 hrs
• Brand: Idrobase Group
