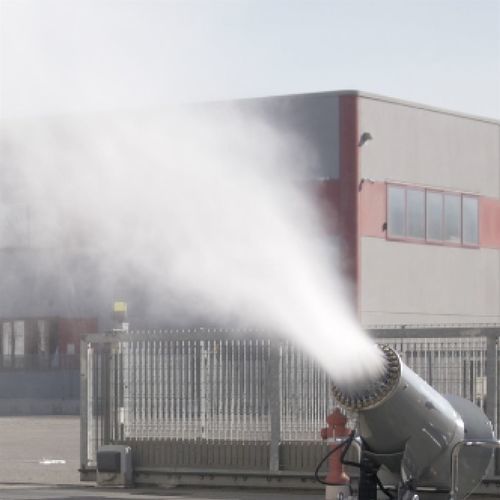

Dust binding fog cannon Elefantino 2.0

dust controlmobile

Product overview
Trolley-mounted high-pressure misting unit with 30 AISI 304 stainless-steel nozzles. ON-OFF control panel for pump and fan. Fan range up to 28 m (at 21°C, no wind). Designed for suppression of fine dust (PM10) in small to medium-sized areas such as building renovation sites and dusty material handling operations.

Technical data
CODE | Model | Pressure | Flow rate | Drop size | Power (3x400V-50Hz) | Weight
ZX.8406 | ELEFANTINO 2.0 - 11 | 70 bar | 11 l/min | 20 µm | 3.7 kW | 120 kg

Technical features - general

• Frame in S235JR steel, chrome-plated and clear coated
• Solid wheels for site mobility
• No. of nozzles: 1 AISI 304 stainless-steel ring with 30 nozzles
• Coverage area: 150 m²
• Elevation: manual adjustment from 0° to +30°
• Water inlet kit supplied with pressure stabiliser
• Protection rating: IP54
• Integrated by-pass valve

Fan technical specifications

• Power absorption: 2.2 kW, 2800 rpm
• Fan jet range: 28 m at 21°C (without wind)
• Power supply: 3x400V–50Hz
• Fan diameter: 397 mm
• Noise level: <90 LwA

Pump module technical specifications

• Pressure: 80 bar for 6.5 and 15 l/min versions; 70 bar for 11 and 21 l/min versions
• Pump module: 1450 rpm, reciprocating rod motion, brass head, 3 ceramic pistons
• Electric motor: 1450 rpm, 1.5 kW (6.5 and 11 l/min); 2.2 kW (15 l/min); 3 kW (21 l/min)

Technical characteristics

• Code: ZX.8406
• Commercial model: Elefantino 2.0
• Displayed model entry: ELEFANTINO 2.0 - 11
• Pressure (table): 70 bar
• Flow rate (table): 11 l/min
• Drop size: 20 µm
• Power (3x400V-50Hz): 3.7 kW (table)
• Weight: 120 kg
• Nozzles: 30 (AISI 304 ring)
• Coverage area: 150 m²
• Fan jet range: 28 m (at 21°C, without wind)
• Fan diameter: 397 mm
• Fan power absorption: 2.2 kW
• Noise level: <90 LwA
• Pump details: 1450 rpm, reciprocating rod motion, brass head, 3 ceramic pistons
• Electric motor options: 1.5 kW (6.5 and 11 l/min), 2.2 kW (15 l/min), 3 kW (21 l/min)
• Protection rating: IP54
• Elevation adjustment: 0° to +30° manual
• Water inlet: kit with pressure stabiliser
