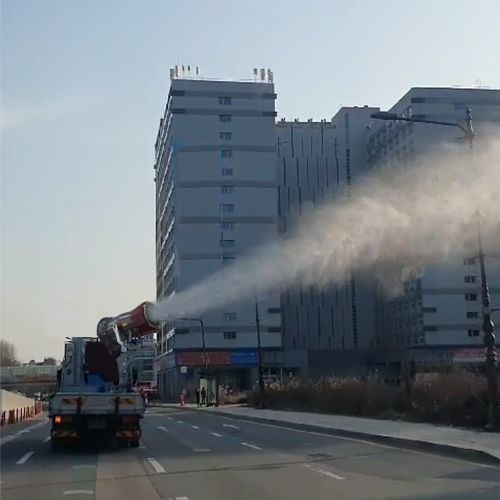

Dust control fog cannon Elefante

heavy-duty

Product description
Elefante 120bar produces 11 µm micro-droplets to suppress PM2.5 at source by agglomeration and deposition. Designed for industrial dust control, the system reduces airborne particulate dispersion and exposure in large open or semi-enclosed sites.

Overview

• Fan jet range: 75–80 m
• Operating pressure: 120 bar
• Nozzles: 135 (3 rings, 45 each)
• Ventilation unit independent from pump unit
• Electric motor with double flange and flexible coupling
• Coverage: up to 20,000 m²

Technical data (table)

• CODE: ZX.8580
• Model: ELEFANTE 120bar
• Pressure: 120 bar
• Flow rate: 48 l/min
• Drop size: 11 µm
• Power (system): 29.5 kW (3x400V-50Hz)
• Weight: 700 kg
• Code version with dispenser: ZX.8580-DOS

Fan technical specifications

• Nozzles: 135 in 3 rings (45 each)
• Coverage: up to 20,000 m²
• Air flow rate: 33,500 m³/h
• Power absorption: 18.5 kW
• Power supply: 3x400V–50Hz
• Fan jet: 75 m (measured at 15 m height, no wind)
• Rotation: 340° automatic
• Elevation: -15° to +45° automatic
• Fan diameter: 710 mm
• Noise: < 93 LwA

Pump module technical specifications

• Pressure: 120 bar
• Professional pump: 1450 rpm, rod movement, brass head, 3 ceramic pistons
• Electric motor: 1450 rpm, 11 kW
• Integrated by-pass valve
• High-pressure switch
• Unload solenoid valve

Technical characteristics

• Code: ZX.8580
• Commercial model name: ELEFANTE 120bar
• Pressure: 120 bar
• Flow rate: 48 l/min
• Drop size: 11 µm
• Fan jet range: 75–80 m (depending on measurement point)
• Nozzles: 135 (3 rings, 45 each)
• Air flow rate: 33,500 m³/h
• Fan diameter: 710 mm
• Power (system): 29.5 kW (3x400V-50Hz)
• Fan power absorption: 18.5 kW
• Pump motor: 11 kW (1450 rpm)
• Weight: 700 kg
• Protection rating: IP55
• Frame: galvanized steel
• Rotation: 340° automatic; Elevation: -15° to +45° automatic
