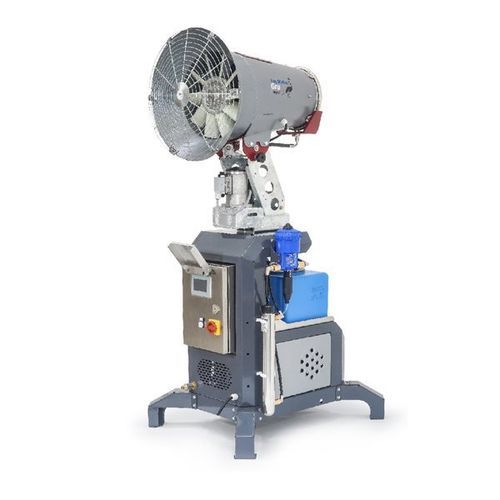

Dust control fog cannon GRU

for odor controlheavy-duty

Product overview
Compact industrial misting system for dust (PM2.5/PM10) and odour suppression in medium areas. Available in several flow-rate versions, the unit combines a galvanized steel frame, a 30-nozzle AISI 304 stainless ring and an integrated pump and fan for targeted coverage.

Highlights

• Heavy-duty galvanized steel structure
• Designed for medium-area dust and odour suppression
• Industrial-grade performance with compact footprint

Technical data

• ZX.8611 | GRU 6.5L | 70 bar | 6.5 L/min | 12 μm | 4.9 kW | 170 Kg
• ZX.8611-DOS | GRU DOS 6.5L | 70 bar | 6.5 L/min | 12 μm | 4.9 kW | 170 Kg
• ZX.8612 | GRU 11L | 70 bar | 11 L/min | 18 μm | 4.9 kW | 170 Kg
• ZX.8612-DOS | GRU DOS 11L | 70 bar | 11 L/min | 18 μm | 4.9 kW | 170 Kg
• ZX.8613 | GRU 15L | 70 bar | 15 L/min | 24 μm | 5.6 kW | 170 Kg
• ZX.8613-DOS | GRU DOS 15L | 70 bar | 15 L/min | 24 μm | 5.6 kW | 170 Kg
• ZX.8614 | GRU 21L | 70 bar | 21 L/min | 24 μm | 6.4 kW | 170 Kg
• ZX.8614-DOS | GRU DOS 21L | 70 bar | 21 L/min | 24 μm | 6.4 kW | 170 Kg

Technical features
General

• Galvanized steel frame
• Electric control panel with 7" touch screen and PLC to manage fan, pump, rotation and work cycles
• Protection rating: IP54
• Tank capacity: 30 L
• Dimensions (WxLxH): 1200 x 800 x 1700 mm

Fan technical specifications

• No. of nozzles: 1 AISI 304 stainless ring with 30 nozzles
• Coverage: up to 1,500 m2
• Power supply / fan rating: 3 kW – 2800 g/min
• Fan jet: 30 m at 21°C (no wind)
• Power supply: 3x400V – 50Hz
• Rotation: 300° automatic
• Elevation: -20° / +25° manual
• Fan diameter: 397 mm
• Noise: <87 LwA

Pump module technical specifications

• Operating pressure: 70 bar for 6.5, 11, 15 and 21 L/min versions
• Professional pump: 1450 RPM, rod movement, brass head, 3 ceramic pistons
• Electric motor: 1450 g/min – 1.9 kW for 6.5 and 11 L/min; 2.6 kW for 15 L/min; 3.4 kW for 21 L/min
• Integrated by-pass valve

Commercial data / Technical specifications

• Commercial name: GRU
• Available flow rates: 6.5 L/min; 11 L/min; 15 L/min; 21 L/min
• Operating pressure: 70 bar
• No. of nozzles: 30 (AISI 304 stainless ring)
• Tank capacity: 30 L
• Coverage area: up to 1,500 m2
• Fan jet range: 30 m (at 21°C, no wind)
• Power (depending on model): from 4.9 kW up to 6.4 kW
• Weight: 170 Kg
• Protection rating: IP54
• Dimensions (WxLxH): 1200 x 800 x 1700 mm
