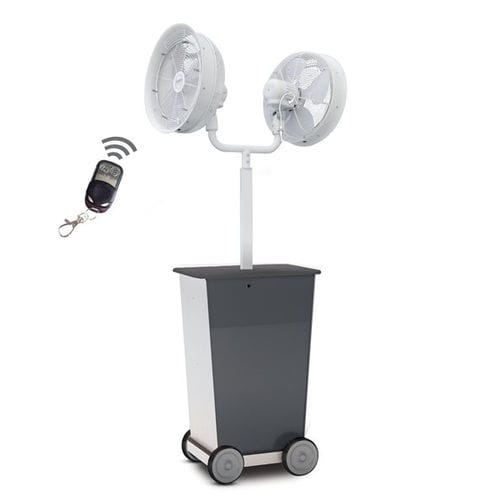

Dust suppression mist system ZX.5056-RC

commercialoutdoorhigh-pressure

Overview
Outdoor furniture equipped with a sterilized nebulization system for cooling and air treatment in terraces, restaurants and outdoor work areas.

Summary
FURNISHING & REFRESHING. Multifunctional unit for indoor and outdoor use, suitable for both private and commercial environments seeking localized cooling and air quality control.

How it works
Cooling is obtained by the heat exchange between the fine mist and ambient air. The mist reduces temperature, suppresses dust and smoke particles (including cigarette smoke) and helps deter flying insects, improving comfort in the treated area.

Sterilizer
Idrobase Group integrates a “Clean Breathing” sterilization stage that treats the water before emission. Although water may be initially clean, it can be contaminated by bacteria, viruses or parasites. The system exposes the water to sterilizing rays at a wavelength that inactivates microbial DNA, preventing reproduction and ensuring emitted mist is sterilized.

Remote control
Remote operation allows ON/OFF control and integration with optional WiFi modules for smartphone management.

PLUS

• significantly lowers perceived temperature
• suppresses dust and airborne particles
• keeps mosquitoes and flying insects away
• neutralizes unpleasant odours
• built for long service life
• weather resistant
• designed for outdoor installation

Highlights

• REFRESHING
• FURNISHES
• SUITABLE FOR WORKING AREAS
• PRODUCT MADE TO LAST OVER TIME
• RESISTANT TO ATMOSPHERIC AGENTS
• SIGNIFICANT TEMPERATURE REDUCTION
• NEUTRALISES UNPLEASANT ODOURS AND DUST
• PATENTED SOLUTION
• USA PATENTED 29/489,688

Technical data (table)
CODE | Height of the nebuliser | Air flow rate | Rotation 90° | Misting covered area | Water Pressure | Analogue timer for pause/work cycles | Total power (fan+ motor pump)
ZX.5056-RC | 224 cm | 2x9000 m3/h | yes | 100 m2 | 60 bar | ✔ | 450 W

Technical specifications

• Code: ZX.5056-RC
• Height of the nebuliser: 224 cm
• Air flow rate: 2x9000 m3/h
• Rotation 90°: yes
• Misting covered area: 100 m2
• Water Pressure: 60 bar
• Analogue timer for pause/work cycles: ✔
• Total power (fan + motor pump): 450 W
• Optional IT.UV-5W — UV Sterilizer
• Optional ZX.2373 — WiFi socket for ON/OFF control by smartphone
• Optional PC.KXC-01 — Adjustable nickelled brass adapter
• Optional IT.0581 — Water supply kit complete with mesh filter and Fog module 3m water connection pipe
• Optional ZX.KT05 — Preventive maintenance kit
