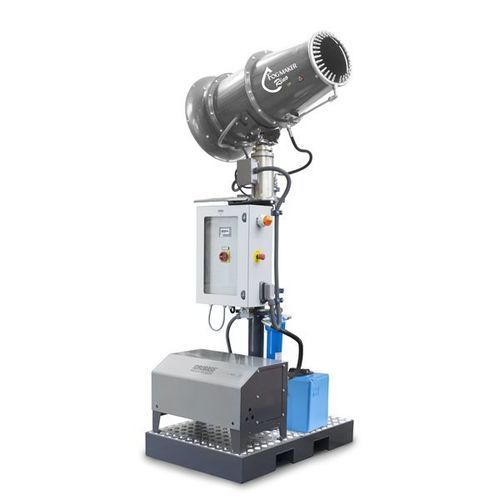

Dust control fog cannon Rino

for environment sanitizationtemperature controlfor odor control

Overview
Rino is a compact industrial fogging system designed to neutralize and suppress fine airborne dust and to provide misting for cooling, odour neutralization and large-area air treatment. Configurable with selectable flow rates and pressures to meet site-specific requirements. Fan-assisted jet can reach up to 33 m in no-wind conditions, providing targeted coverage for outdoor and semi-enclosed environments.

Plus

• Brushless motor for reduced maintenance
• Easy-to-use touchscreen for local control
• Independent ventilation unit separate from pump module
• Optional remote management for centralized control and monitoring

Technical data (models table)
CODE: ZX.8300-T | Model: Rino 11 touch | Pressure: 70 bar | Flow rate: 11 l/min | Drop size: 18 µm | Power (3x400V-50Hz): 4.5 kW | Weight: 250 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG02 | Preventive maintenance 1500 hrs (optional): ZX.150IBG02
CODE: ZX.8301-T | Model: Rino 15 touch | Pressure: 80 bar | Flow rate: 15 l/min | Drop size: 24 µm | Power (3x400V-50Hz): 5.2 kW | Weight: 255 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG03 | Preventive maintenance 1500 hrs (optional): ZX.150IBG03
CODE: ZX.8303-T | Model: Rino 21 touch | Pressure: 70 bar | Flow rate: 21 l/min | Drop size: 24 µm | Power (3x400V-50Hz): 6 kW | Weight: 260 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG05 | Preventive maintenance 1500 hrs (optional): ZX.150IBG05
CODE: ZX.8310-T | Model: Rino-M 11 touch | Pressure: 70 bar | Flow rate: 11 l/min | Drop size: 18 µm | Power (3x400V-50Hz): 4.5 kW | Weight: 370 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG02 | Preventive maintenance 1500 hrs (optional): ZX.150IBG02
CODE: ZX.8311-T | Model: Rino-M 15 touch | Pressure: 80 bar | Flow rate: 15 l/min | Drop size: 24 µm | Power (3x400V-50Hz): 5.2 kW | Weight: 380 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG03 | Preventive maintenance 1500 hrs (optional): ZX.150IBG03
CODE: ZX.8312-T | Model: Rino-M 21 touch | Pressure: 70 bar | Flow rate: 21 l/min | Drop size: 24 µm | Power (3x400V-50Hz): 6 kW | Weight: 380 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG05 | Preventive maintenance 1500 hrs (optional): ZX.150IBG05
CODE: ZX.8313-T | Model: Rino 4M TOUCH | Pressure: 80 bar | Flow rate: 11 l/min | Drop size: 18 µm | Power (3x400V-50Hz): 4.5 kW | Weight: 450 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG02 | Preventive maintenance 1500 hrs (optional): ZX.150IBG02
CODE: ZX.8315-T | Model: Rino 11 touch hydraulic arm | Pressure: 70 bar | Flow rate: 11 l/min | Drop size: 18 µm | Power (3x400V-50Hz): 4.5 kW | Weight: 370 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG02 | Preventive maintenance 1500 hrs (optional): ZX.150IBG02
CODE: ZX.8333-T | Model: Rino touch mobile | Pressure: 70 bar | Flow rate: 21 l/min | Drop size: 24 µm | Power (3x400V-50Hz): 6 kW | Weight: 580 kg | Preventive maintenance 750 hrs (standard): ZX.75IBG05 | Preventive maintenance 1500 hrs (optional): ZX.150IBG05

Fan technical specifications
Number of nozzles: single AISI 304 stainless steel ring with 30 nozzles
Coverage: 1,900 m2
Air flow rate: 9,200 m3/h
Power absorption: 3 kW (2,800 rpm indicated)
Fan jet: up to 33 m at 21°C (no wind)
Power supply: 3x400V – 50 Hz
Elevation: -25° to +35° manual
Fan diameter: 450 mm
Noise: < 80 LwA

Pump module technical specifications
Pressure: 70 bar for 11 and 21 l/min versions; 80 bar for 15 l/min versions
Professional pump: 1,450 rpm, rod movement, brass head, 3 ceramic pistons
Electric motor 1,450 rpm: 1.5 kW for 11 l/min, 2.2 kW for 15 l/min, 3 kW for 21 l/min
Integrated by-pass valve
Low-pressure water switch
Unload solenoid valve

Technical features / specifications

• Frame: painted steel frame with cataphoresis coating
• Trolley: galvanized steel trolley (only for ZX.8333)
• Electrical panel: complete with 4.3” touchscreen for managing pump, fan, rotation range, work cycles and preventive maintenance schedule
• Protection rating: IP55
• Brushless motor (maintenance-free)
• Ventilation unit independent from pump unit
• Remote management: optional
• Fan: 1 AISI 304 ring with 30 nozzles; coverage 1,900 m2; airflow 9,200 m3/h; jet up to 33 m (no wind)
• Pump: professional high-pressure pump with brass head and 3 ceramic pistons; integrated bypass; safety switches and unload solenoid
• Available model variants and weights/power as listed in the technical table above
