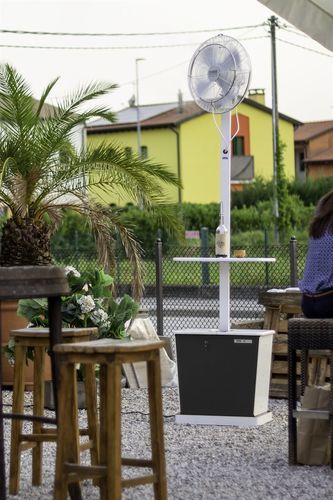

Commercial mist system ALBA 90

for dust suppressionhigh-pressureoutdoor

Subtitle
Outdoor furniture with sterilized nebulization system.

Overview
Multifunctional furnishing solution for indoor and outdoor spaces, suitable for commercial and residential projects. Designed to integrate seating or terrace layouts while providing localized microclimate control.

How it works
Misting cools by evaporative heat exchange between the fine mist and ambient air. The system also contributes to dust suppression (including cigarette smoke), odour neutralization and reduces the presence of flying insects in the treated zone.

Sterilizer
The nebulized water is purified before emission by the Clean Breathing sterilization system. The water passes through a sterilizing exposure at a wavelength that disrupts microbial DNA, preventing reproduction and rendering harmful microorganisms inactive prior to nebulization.

PLUS

• support base for your drink
• significant local temperature reduction
• repels mosquitoes
• neutralizes odours and limits dust

Highlights

• REFRESHING
• FURNISHING
• HOUSEHOLD AREAS
• PUBLIC AREAS

Technical data (table)
CODE: ZX.5070-90
Height of the nebuliser: 264cm
Air flow rate: 7.500m3/h
Rotation 90°: ✔
Misting covered area: 40m2
Water pressure: 60bar
Analogue timer for setting pause/work cycles: ✔
Total power (fan + motor pump): 274W

Optionals

• IT.UV-5W — UV Sterilizer
• ZX.2373 — WiFi socket for ON/OFF control by smartphone
• PC.KXC-01 — Adjustable nickeled brass adapter
• ZX.KT05 — Preventive maintenance kit

Characteristics / technical specifications

• Code: ZX.5070-90
• Height of the nebuliser: 264 cm
• Air flow rate: 7.500 m3/h
• Rotation: 90° (yes)
• Misting covered area: 40 m²
• Water pressure: 60 bar
• Analogue timer for pause/work cycles: yes
• Total power (fan + motor pump): 274 W
