Commercial mist system OASI

for dust suppressiondisinfectantoutdoor

Short description

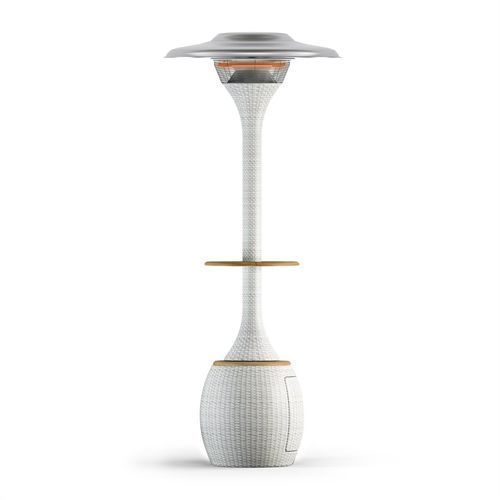

OASI is multifunctional outdoor furniture integrating a sterilized misting system, lighting and heating. Designed for terraces, hospitality and commercial outdoor areas, it provides cooling, insect distancing and ambient heating with remote and app control.

How it works
The mist cools by evaporative heat exchange and reduces airborne dust and odors. Fine droplets also help deter flying insects and improve comfort in outdoor seating areas.

Sterilizer
Water is exposed to UV sterilizer rays that inactivate microorganism DNA before nebulization, reducing biological contamination risks and improving hygiene in shared outdoor spaces.

Remote control
Remote control and smartphone app compatibility allow on/off operation, lighting color selection and scheduling. Optional WiFi socket enables cloud-based control.

PLUS

• Furnishes terraces and patios for commercial venues
• Integrated multicolor lighting for atmosphere
• Stable base that supports drinks
• Reduces mosquitoes and flying insects
• Neutralizes odors and suppresses dust
• Provides evaporative cooling in hot conditions
• Provides heating function for cooler periods

Standard equipment

• Remote control — remote operation of functions
• Sombrero — large canopy disk to shelter and reflect heat
• Color combinations — UV- and weather-resistant rattan structure (bianco neve); table/base finish in natural wood
• Lights Kit Multicolor — customizable lighting via smartphone app

Optionals

• ZX.0456-F — Distributor Kit (Tablet + Flyers)
• ZX.KT02-MC — Preventive maintenance kit
• IT.UV-5W — UV Sterilizer
• ZX.2373 — WiFi socket for smartphone ON/OFF control
• PC.KRTR — Kit of 2 wheels (brown)
• IT.0965 — Waterproof polyester cover (column)
• PC.KXC-01 — Adjustable nickel-plated brass adapter
• IT.0581 — Water supply kit with mesh filter and Fog module 3m connection pipe

Technical data (table)
CODE | Height | Electric heater 1500W | Misting area (m2) | Water pressure at the nozzle | Drop size | Analogue timer for pause/work cycles | Total power in summer time | Total power in winter time
ZX.5166-MC | 215 cm | ✔ | 6 | 25 bar | 25 mcr | ✔ | 140 W | 1530 W
ZX.5341-MC | 215 cm | ✔ | 9 | 60 bar | 11 mcr | ✔ | 230 W | 1530 W

Additional highlights

• Patented solution — US PATENTED 29/489,687
• Functions: Heating, Refreshing, Furnishing, Sombrero accessory, Multicolor lights kit
• UV sterilization option to sanitize water before nebulization

Technical specifications

• Product name: OASI
• Models: ZX.5166-MC, ZX.5341-MC
• Height: 215 cm
• Electric heater: 1500 W (present)
• Misting area: 6 m2 (ZX.5166-MC), 9 m2 (ZX.5341-MC)
• Water pressure: 25 bar (ZX.5166-MC), 60 bar (ZX.5341-MC)
• Drop size: 25 mcr (ZX.5166-MC), 11 mcr (ZX.5341-MC)
• Analogue timer for pause/work cycles: included
• Total power (summer): 140 W (ZX.5166-MC), 230 W (ZX.5341-MC)
• Total power (winter): 1530 W (both models)
• UV sterilizer option: IT.UV-5W
• Remote control and smartphone app for lights and functions (WiFi socket optional ZX.2373)
• Rattan structure resistant to UV and weather; table/base finish in natural wood
• Available accessories for maintenance, transport and installation
