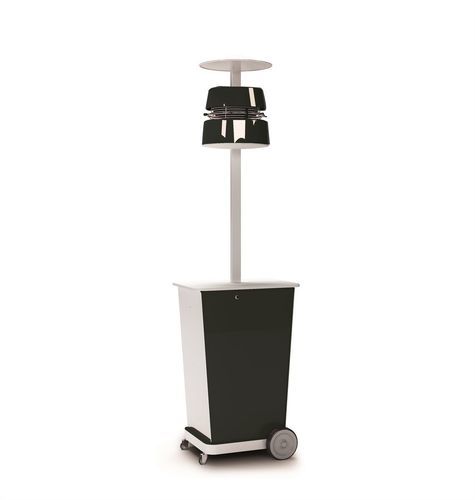

Commercial mist system ATMOSFERA

for dust suppressiondisinfectantoutdoor

Overview
Outdoor furniture integrating a sterilized nebulization system for cooling, odor and dust control and insect distancing. Designed for indoor and outdoor use in commercial and public environments.

How it works
The misting system cools by evaporative heat exchange between the fine mist and surrounding air. The mist also contributes to neutralizing odors, suppressing airborne dust (including cigarette smoke) and reducing the presence of flying insects.

Sterilizer
The unit incorporates the "Clean Breathing" sterilization system: water is exposed to sterilizing rays at a wavelength that disrupts microbial DNA, rendering microorganisms inactive and preventing reproduction. The emitted ultra-fine mist is purified prior to release.

PLUS

• Illuminates outdoor spaces at night
• Functional furnishing for terraces, patios and public areas
• Wide integrated table surface for food or drinks
• Helps keep mosquitoes and flying insects away
• Neutralizes odors and suppresses dust
• Significant local temperature reduction

Highlights

• Refreshing effect
• Furnishing element
• Suitable for public and commercial areas
• Patented solution
• US PATENTED 29/489,688

Optional accessories

• IT.UV-5W: UV Sterilizer
• ZX.2373: WiFi socket for ON/OFF control by smartphone
• PC.KXC-01: Adjustable nickelled brass adapter
• IT.0581: Water supply kit complete with mesh filter and Fog module 3m water connection pipe
• ZX.KT05: Preventive maintenance kit

Technical specifications

• CODE: ZX.5053-RCL
• Height of the nebuliser: 260 cm
• Air flow rate: 4.020 m3/h
• Rotation 90°: not specified
• Misting covered area: 25 m2
• Water pressure: 60 bar
• Analogue timer for setting pause/work cycles: ✔
• Total power (fan + motor pump): 260 W
