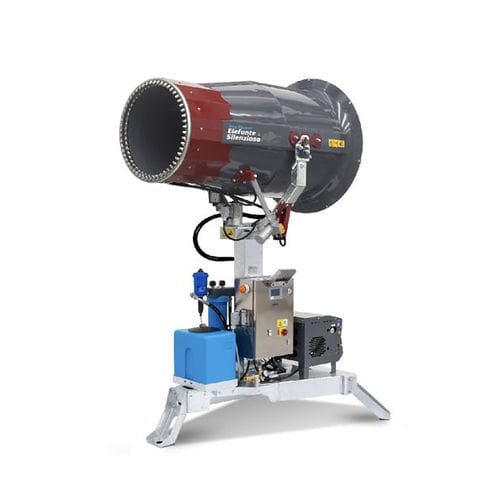

Dust control fog cannon ZX.8550
dust binding

Dust control fog cannon - ZX.8550 - Idrobase Group Srl - dust binding
Dust control fog cannon - ZX.8550 - Idrobase Group Srl - dust binding
Add to favorites
Compare this product
Go to the Idrobase Group Srl website for more information

Characteristics

Applications
dust control, dust binding

Description

Overview
  • Compact industrial mist cannon for dust suppression and area humidification
  • Intuitive touchscreen control with PLC and weekly programmer
  • Optional mechanical proportional dispenser 0.2–2% for chemical dosing
  • Suitable for indoor and outdoor industrial sites


Technical data (table)
CODE | Model | Pressure | Flow rate | Drop size | Power (3x400V-50Hz) | Weight
ZX.8550 | ELEFANTE SILENZIOSO on base | 65 bar | 50 L/min | 20 μm | 25 kW | 540 kg

General
  • Frame: hot-dip galvanised S235JR steel; sensitive components with epoxy powder coating
  • Electrical panel: PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and warning lights
  • Ingress protection: IP54
  • Remote control (optional): up to 50 m range in free field
  • Dimensions (WxLxH on base): 2000 x 1550 x 2530 mm; weight: 540 kg


Fan technical specifications
  • Nozzles: 110 arranged in 2 rings
  • Coverage area: 24,000 m²
  • Air flow rate: 39,500 m³/h
  • Fan power absorption: 18.5 kW
  • Jet range (laboratory): 90 m
  • Power supply: 3x400V-50Hz
  • Rotation: 340° automatic
  • Elevation: -15° / +45° automatic
  • Fan diameter: 820 mm
  • Acoustic emission: <94 LwA


Pump technical features
  • Maximum working pressure: 120 bar
  • Professional triplex pump: 1450 rpm, rod movement, brass head, 3 ceramic pistons
  • Electric motor (pump): 1450 rpm, 6.3 kW
  • Integrated by-pass valve and high-pressure switch
  • Filtering: 50 μm; water inlet pressure regulator
  • Preventive maintenance kits available
  • Models available with mechanical proportional dispenser 0.2–2% (see specific code)


Technical specifications
  • Code: ZX.8550
  • Commercial name: ELEFANTE SILENZIOSO on base
  • Nominal pump pressure: 65 bar
  • Maximum pump pressure: 120 bar
  • Flow rate: 50 L/min
  • Droplet size: 20 μm
  • Electrical power: 25 kW (3x400V-50Hz)
  • Weight: 540 kg
  • Nozzles: 110 (2 rings)
  • Coverage: 24,000 m²
  • Air flow: 39,500 m³/h
  • Fan power: 18.5 kW
  • Fan range (lab): 90 m
  • Fan diameter: 820 mm
  • Rotation: 340° automatic
  • Elevation: -15° / +45° automatic
  • Pump motor: 1450 rpm, 6.3 kW
  • Filtering: 50 μm
  • Dimensions (WxLxH on base): 2000 x 1550 x 2530 mm

Exhibitions

Meet this supplier at the following exhibition(s):

Ecomondo 2026
Ecomondo 2026

3-06 Nov 2026 Rimini (Italy) Hall C6 - Stand 100

  • More information
    Go to the Idrobase Group Srl website for more information
