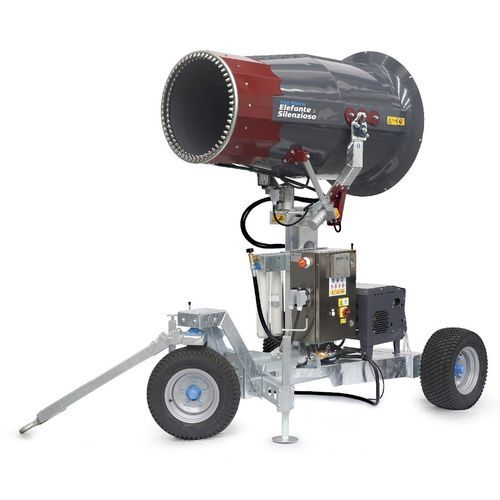

Mobile fog cannon ELEFANTE SILENZIOSO
Add to favorites
Compare this product
Characteristics
- Other characteristics
- mobile
Description
Product overview
Technical data
CODE | Model | Pressure | Flow rate | Drop size | Power (3x400V-50Hz) | Weight
ZX.8551 | ELEFANTE SILENZIOSO mobile | 65bar | 50l/min | 20mcr | 25Kw | 660Kg
Technical features
Fan technical specifications
Pump technical features
Technical specifications
- Solid frame and pneumatic wheels for easy movement on any surface (ELEFANTE SILENZIOSO mobile)
- Easy and intuitive touch screen
- Available version with mechanical proportional dispenser 0.2–2%
- Also suitable for indoor areas
Technical data
CODE | Model | Pressure | Flow rate | Drop size | Power (3x400V-50Hz) | Weight
ZX.8551 | ELEFANTE SILENZIOSO mobile | 65bar | 50l/min | 20mcr | 25Kw | 660Kg
Technical features
- Frame: hot-galvanised S235JR steel; sensitive components protected with epoxy powder coating
- Electrical panel: PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights
- Protection rating: IP54
- Remote control (optional) with range up to 50 m (free field)
- Dimensions (W×L×H): 2400 × 1720 × 2500 mm
Fan technical specifications
- Nozzles: 110 arranged in 2 rings
- Coverage area: 24,000 m2
- Air flow rate: 39,500 m3/h
- Fan power absorption: 18.5 kW
- Fan jet range: 90 m (laboratory measurements under static conditions of maximum efficiency)
- Power supply: 3x400V–50Hz
- Rotation range: 340° automatic
- Elevation range: -15° to +45° automatic
- Fan diameter: 820 mm
- Noise level: <94 LwA
Pump technical features
- Maximum working pressure: 120 bar
- Professional pump: 1450 rpm, rod movement, brass head, 3 ceramic pistons
- Electric motor: 1450 rpm, 6.3 kW
- Integrated by-pass valve
- High-pressure switch included
- Preventive maintenance kits available
- Models available with mechanical proportional dispenser 0.2–2% (see specific code)
- Filtering: 50 μm
- Water inlet pressure regulator included
Technical specifications
- Code: ZX.8551
- Commercial name (model): ELEFANTE SILENZIOSO mobile
- Working pressure (pump): up to 120 bar (maximum)
- Specified pressure (table): 65 bar
- Flow rate: 50 L/min
- Drop size: 20 mcr
- Installed power (3x400V-50Hz): 25 kW
- Weight: 660 kg
- Frame material: hot-galvanised S235JR steel; epoxy powder coating on sensitive components
- Electrical panel: PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start, flashing lights
- Protection rating: IP54
- Remote control: optional, range up to 50 m
- Dimensions (W×L×H): 2400 × 1720 × 2500 mm
- Nozzles: 110 (2 rings)
- Coverage area: 24,000 m2
- Fan air flow: 39,500 m3/h
- Fan absorption: 18.5 kW
- Fan jet range: 90 m (laboratory static conditions)
- Fan diameter: 820 mm
- Rotation range: 340° automatic
- Elevation range: -15° to +45° automatic
- Noise level: <94 LwA
- Pump type: professional, 1450 rpm, rod movement, brass head, 3 ceramic pistons
- Pump motor: 1450 rpm, 6.3 kW
- By-pass valve: integrated
- High pressure switch: included
- Filter: 50 μm
- Proportional dispenser: mechanical option 0.2–2% available
- Water inlet pressure regulator: included
