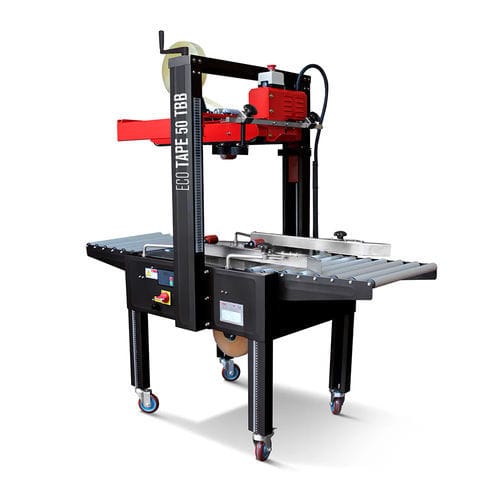

Adhesive tape taping machine Eco Tape 50 TBB

manual setting

Semi-automatic taping machine Eco Tape 50 TBB a manual sizing. The Eco Tape 50 TBB is a semi-automatic “entry level” carton sealer with manual dimensioning, which seals with the self-adhesive tape the lower and upper part of fixed size American type boxes. The feature made in this 2019 model is to have the interchangeable taping head system. The machine can be used by non-specialized operators as it requires very simple adjustment operations. The advancement of the box takes place through two drive belts placed in the lower and upper part of the machine, which guarantee maximum uniformity of sliding. The result is a perfect alignment of the flaps and therefore an optimal sealing, which is performed by the performing taping heads. The presence of the “energy saving” system allows the timed stopping of the drive with the taping completed. FEATURES Machine dimensions: L 1630 x W 750 x H 1460 -1670 mm Net weight: 120 Kg Power supply: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,24 kW Electrical protection: IP 54 Maximum noise: 75 dB Taping head: Standard 50 – 60 mm Closing system: Tape Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 22 mt/min Working table height: H 690/750 mm Dimension Min. product: L 150 x W 130 x H 120 mm Max product size: L ∞ x W 500 x H 500 mm Type of boxes: American type
