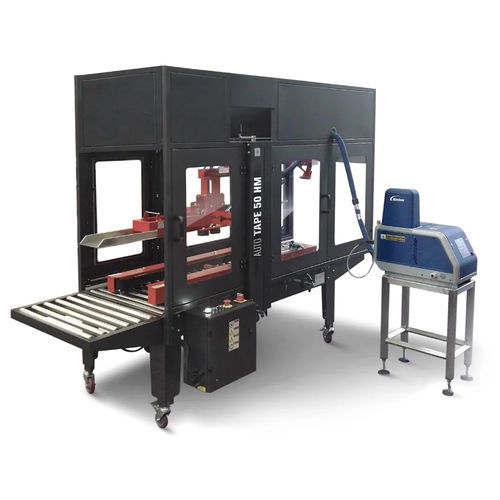

Multi-flap case sealer Auto Tape 50 HM
hot-melt glueautomatic

multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
Add to favorites
Compare this product


Characteristics

Flaps
multi-flap
Sealing mode
hot-melt glue
Other caracteristic
automatic
Throughput

Max.: 10 p/min

Min.: 8 p/min

Description

DESCRIPTION Automatic taping machine with glue close flap and lower taping of the boxes. Automatic carton sealer with manual dimensioning and flap closing system. It folds the four upper flaps and seals the top and bottom uniform sized American-type boxes automatically. Easy and fast regulations. To be used on fully automatic lines without operators. Machine includes infeed and outfeed rollers and can work with the most important hot melt systems on the market. Auto Tape 50 HM is equipped with the Nordson hot melt system,mod. “MESA 6,2 H/G”. TECHNICAL FEATURES Machine dimensions: L 2536 x W 1021 x H 2043 mm Net weight: 280 Kg. Power supply: 380 Volts Power supply frequency: 50/60 Hz Installed power: 0,4 kW Electrical protection: IP 54 Air pressure: 6 bar Air consumption: 7 Nlitri/min Maximum noise: 75 dB Taping head: 50 – 75 mm Closing system: Glue Sealing speed: 8/10 scatole min. Transfer speed: 19 mt/min Working table height: 550 / 750 mm Dimension Min. product: L 200 x W 150 x H 120 mm Max product size: L 550 x W 480 x H 480 mm Type of boxes: American type
