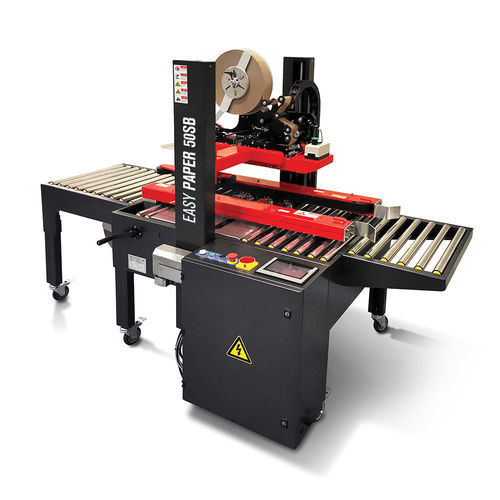

Adhesive tape taping machine EASY PAPER 50 SB

manual setting

Overview
The EASY PAPER 50 SB is a semi-automatic taping machine with manual sizing, designed to seal the top and bottom of fixed-size American boxes using water-activated Kraft paper tape, with or without filament reinforcement. Two motorized side belts ensure uniform sliding, stability and precision during the taping process. The machine features two pneumatic taping heads and a touchscreen panel with PLC control for preset tape lengths and work settings.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical purchasing support
• Competitive cost of ownership
• 12-month warranty on spare parts
• Fast delivery and easy storage
• Manufacturer presence on the market for over 35 years

Key features

• Water-activated recyclable Kraft paper tape, available with or without filament reinforcement
• Anti-tamper function: high-adhesion tape leaves visible traces if tampered
• Two pneumatic taping heads, programmable from the display for customized sealing
• Motorized side belts for stable and constant box advancement
• Touch panel with PLC for intuitive management and preset tape length programming

Product information
Machine size: L 1932 x W 1173 x H 1390 – 1610 mm
Net weight: 280 Kg
Supply voltage: 220 Volt 1Ph
Power frequency: 50 / 60 Hz
Air pressure: 6 bar
Air consumption: 5/6 Nl/min
Adhesive tape: wet Kraft paper tape (with or without filament)
Transfer speed: 12 m/min
Work surface height: 700 - 820 mm
Minimum product size: L 180 x W 130 x H 130 mm
Max. product size: L ∞ x W 500 x H 480 mm
Type of boxes: American style (fixed-size)

Features of the taping machine
The box is advanced by two lateral motorized belts that drive it towards the two taping heads. An energy-saving system activates the belts only when the box is detected by a photocell placed under the infeed roller conveyor. Before the heads, the paper tape is automatically moistened by special sponge rollers and dispensed. Rubber rollers apply the tape to top and bottom flaps and pneumatically operated cutters perform the automatic cut, producing a uniformly sealed, tamper-evident box.

Layout / Additional documents
Layout and technical data sheet available (PDF documents associated with the product).

Technical specifications

• Taping machine weight: 280 kg
• Machine dimensions: L 1932 x W 1173 x H 1390 – 1610 mm
• Power supply: 220 Volts – 50 / 60 Hz
• Box transfer speed: 12 m/min
• Pneumatic supply / Air pressure: 6 bar
• Air consumption: 5–6 Nl/min
• Maximum box weight: 30 kg
• Maximum noise: ≤ 75 dB
• Emergency stop mushroom according to CE regulations
• Adhesive tape: wet Kraft with or without filament
• Standard taping head widths: 50 – 75 mm
• Worktop height: 700 - 820 mm
• Minimum box dimensions: L 180 x W 130 x H 130 mm
• Maximum box dimensions: L ∞ x W 500 x H 480 mm
• Box type: American (fixed-size) boxes
