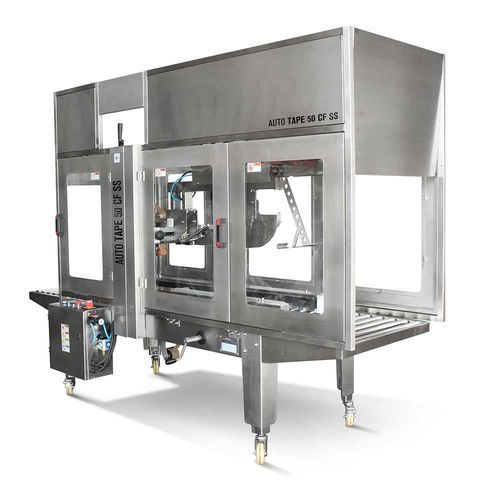

Adhesive tape taping machine 50 CF SS

manual settingautomatic

Overview
The Auto Tape 50 CF SS is an automatic stainless-steel taping machine designed for integration on fully automated packaging lines and for unattended operation. It includes infeed and outfeed roller conveyors and an automatic flap-closing system for consistent top-and-bottom tape sealing of fixed-size American-style boxes.

Primary functions

• Automatic four-flap folding and top-and-bottom adhesive tape application for fast and uniform sealing.
• Manual size adjustment with intuitive controls accessible from both sides.
• Sensors for tape breakage and end-of-tape detection to maintain continuous operation.
• Centralized control via PLC panel for safe and reliable machine management.
• Infeed and outfeed roller conveyors to facilitate box flow and station integration.

Optional equipment / line integration
As an alternative to the standard infeed roller conveyor, the machine can be fitted with an automatic centering and timing unit (cadencer/centerer) with dedicated sensors to regulate incoming box flow, align boxes precisely and insert them at regular intervals — improving continuity and reducing the risk of jams on high-speed automated lines.

5 great reasons to choose this product

• Technical support for purchase and integration
• Good value for investment
• 12-month warranty on spare parts
• Compact footprint for storage and line layout
• Manufacturer experience: over 35 years on the market

Key features (summary)

• Full stainless-steel construction suitable for hygienic and industrial environments
• Tape breakage and end-of-tape sensors
• PLC panel for centralized operation control
• Included infeed and outfeed roller conveyors
• Optional automatic centering/cadencing unit

Product information (table)
Machine size: L 2536 x W 1021 x H 2153 mm
Net weight: 280 kg
Supply voltage: 380 V
Power frequency: 50 / 60 Hz
Installed power: 0.4 kW
Air pressure: 6 bar
Air consumption: 7 Nl/min
Tape types: kraft, polypropylene, PVC
Taping speed: 8–10 boxes/min
Transfer speed: 19 m/min
Work surface height: 660–860 mm
Minimum product size: L 200 x W 150 x H 120 mm
Maximum product size: L 600 x W 500 x H 500 mm
Maximum box weight: 30 kg
Box type: American-style (flap) boxes
Noise level (max): ≤ 75 dB
Safety: Emergency stop buttons compliant with CE standards
