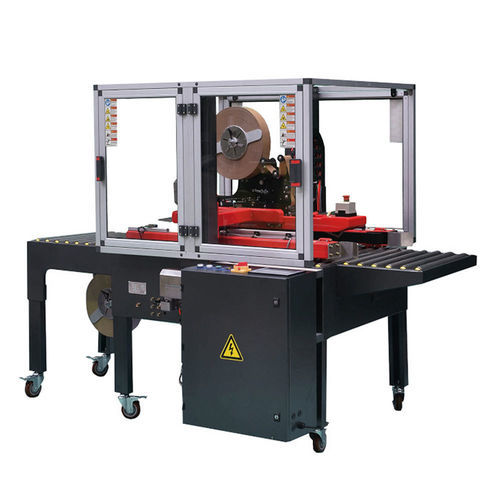

Gummed paper taping machine 50 SB

automatic

Product overview
The Random Paper 50 SB is a self-sizing taping machine designed to seal the top and bottom flaps of American-style boxes using wet-activated Kraft paper tape (with or without filament). It feeds cartons via two motorized side belts for stable, precise conveying and can automatically adapt to the box format inserted at the infeed to accelerate multi-format production.

Key functions and benefits

• Self-sizing system for automatic adjustment to box dimensions
• Two motorized side belts ensuring uniform feeding, stability and accurate positioning
• Two high-performance pneumatic taping heads for independent top and bottom sealing
• Touch-screen panel with PLC control for preset tape length and parameter management
• Use of recyclable wet Kraft paper tape (with or without filament) providing high adhesion and tamper-evident protection

Additional product highlights

• Automatic moistening of paper tape by sponge rollers and application by rubber pressure rollers
• Pneumatically operated cutters for automatic cutting and clean sealing
• Energy-saving activation: motorized belts activate only when a box is detected (photoelectric cell)
• Automatic operating mode available to optimize cycle time and consumption

5 reasons to choose this product

• Technical support available for purchase and setup
• Competitive cost of ownership
• 12-month warranty on spare parts
• Quick to store and integrate into production lines
• Manufacturer with over 35 years of market presence

Technical specifications

• Model: Random Paper 50 SB
• Machine dimensions: L 1932 x W 1173 x H 1390 – 1610 mm
• Net weight: 280 kg
• Power supply: 220 V, 1Ph
• Power frequency: 50 / 60 Hz
• Air pressure (pneumatic supply): 6 bar
• Air consumption: 5–6 N liters/min
• Adhesive tape: wet-activated Kraft paper tape (with or without filament)
• Standard taping heads: 50 – 75 mm
• Transfer (box) speed: 12 m/min
• Work surface height: 700 – 820 mm
• Max box weight: 30 kg
• Maximum noise: ≤ 75 dB
• Emergency stop mushroom (CE-compliant)
• Minimum box dimensions: L 180 x W 130 x H 130 mm
• Maximum box dimensions: L ∞ x W 500 x H 480 mm
• Box type: American style (fixed-size American boxes)
