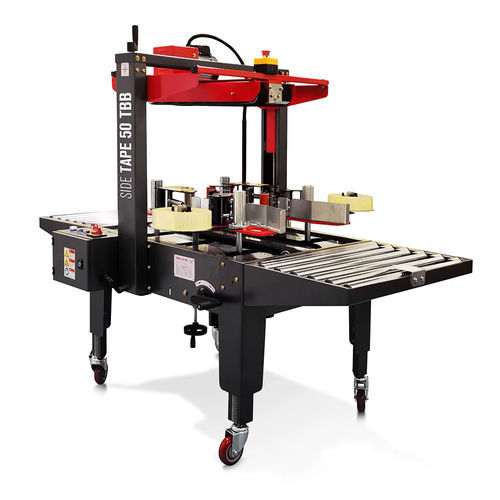

Double-flap carton sealer Side tape 50 TBB
adhesive tapesemi-automatic

double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
Add to favorites
Compare this product


Characteristics

Flaps
double-flap
Sealing mode
adhesive tape
Other caracteristic
semi-automatic
Throughput

Min.: 10 p/min

Max.: 15 p/min

Description

DESCRIPTION Semi-automatic carton sealer suitable for packaging products in a horizontal position or for closing bottom and lid of polystyrene boxes. Semi-automatic manual dimensioning carton sealer with four feeding flat belts (two upper and two lower). This machine is particularly suited for taping boxes in horizontal position, with overlapped flaps and for closing the bottom and cover of polystyrene boxes. Adjustable height of each taping head. Machine includes infeed and outfeed rollers and represents a practical and simple packaging station. TECHNICAL FEATURES Machine dimensions: L 1805 x W 1050 x H 1300/1450 mm Net weight: 220 Kg. Power supply: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,4 kW Electrical protection: IP 54 Maximum noise: 75 dB Taping head: 50 – 75 mm Closing system: Lateral tape Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 19 mt/min Working table height: H 600/750 mm Dimension Min. product: L 150 x W 190 x H 130 mm Max product size: L ∞ x W 400 x H 480 mm Type of boxes: American type
