Double-flap carton sealer Easy Tape 70 TSB
adhesive tapesemi-automatic

double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
Add to favorites
Compare this product


Characteristics

Flaps
double-flap
Sealing mode
adhesive tape
Other caracteristic
semi-automatic
Throughput

Max.: 15 p/min

Min.: 10 p/min

Description

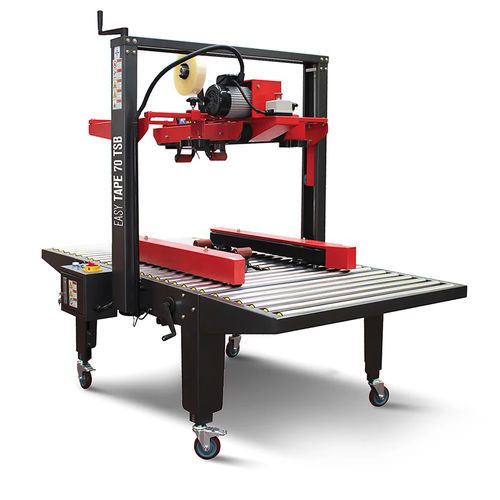

DESCRIPTION Semi-automatic carton sealer ideal for large-sized cardboard boxes. Semi-automatic manual adjustment carton projected for big boxes, which seals the top and the bottom of Americantype fixed size boxes, with adhesive tape. Box feeding is regulated by two lateral belts controlled by two motors and by two top belts controlled by a motor. This system ensures the maximum sliding uniformity. The result is a perfect alignment of the flaps and optimum sealing, performed by the efficient taping heads. TECHNICAL FEATURES Machine dimensions: L 2000 x W 1110 x H 1700 – 1860 mm Net weight: 250 Kg. Power supply: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,4 kW Electrical protection: IP 54 Maximum noise: 75 dB Taping head: 50 – 75 mm Closing system: Tape Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 20 mt/min Working table height: H 590/750 mm Dimension Min. product: L 120 x W 150 x H 150 mm Max product size: L ∞ x W 700 x H 700 mm Type of boxes: American type
